A Carnot heat engine uses a steam boiler at 100^∘ C as the high-temperature reservoir. The low-t

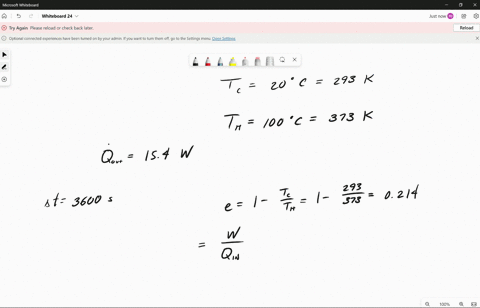

step 1 In this question, we are given a canoe engine. It operates at TH, it goes to 100 degrees Celsius

A Carnot heat engine uses a steam boiler at 100^∘ C as the...

A Carnot heat engine uses a steam boiler at $100^{\circ} \mathrm{C}$ as the high-temperature reservoir. The low-temperature reservoir is the outside environment at $20.0^{\circ} \mathrm{C}$ . Energy is exhausted to the low-temperature reservoir at the rate of 15.4 $\mathrm{W}$ . (a) Determine the useful power output of the heat engine. (b) How much steam will it cause to condense in the high-temperature reservoir in 1.00 $\mathrm{h}$ ?

A Carnot heat engine uses a steam boiler at $100^{\circ} \mathrm{C}$ as the high-temperature reservoir. The low-temperature reservoir is the outside environment at $20.0^{\circ} \mathrm{C}$ . Energy is exhausted to the low-temperature reservoir at the rate of 15.4 $\mathrm{W}$ .
(a) Determine the useful power output of the heat engine.
(b) How much steam will it cause to condense in the high-temperature reservoir in 1.00 $\mathrm{h}$ ?

Key Concepts

Temperature Conversion to Kelvin

Converting temperatures from Celsius to Kelvin is essential in thermodynamic calculations because the formulas, such as those for efficiency, require absolute temperature measurements. Kelvin is the SI unit for temperature in thermodynamics and ensures that temperature ratios are correctly computed in energy efficiency equations.

Energy Conservation in Heat Engines

Energy conservation in a heat engine entails balancing the input heat, the useful work output, and the rejected heat. The work performed by a heat engine is a fraction of the heat taken in, with the remainder being exhausted to the cold reservoir. This principle underlies calculations related to power output, heat rejection, and overall engine efficiency.

Phase Change and Latent Heat

Phase change processes involve a significant energy exchange without a change in temperature, exemplified by the condensation of steam. The latent heat is the energy per unit mass required for a substance to undergo a phase transition. It is crucial for calculating the mass involved in processes such as the condensation of steam when a particular amount of energy is released or absorbed.

Carnot Efficiency

Carnot efficiency represents the maximum possible efficiency of a heat engine operating between two thermal reservoirs. It is determined by the difference in temperatures of the hot and cold reservoirs, expressed in Kelvin, using the formula ? = 1 - (T_cold / T_hot). This concept is fundamental in thermodynamics as it sets the theoretical upper limit on the efficiency that any heat engine can achieve, regardless of its working details.
