A circular loop of wire with radius r=0.0250 m and resistance R=0.390 Ωis in a region of spatia

step 1 Okay, so we're doing chapter 20, problem 23. So in this problem, we have a loop with a radius of

A circular loop of wire with radius r=0.0250 m and...

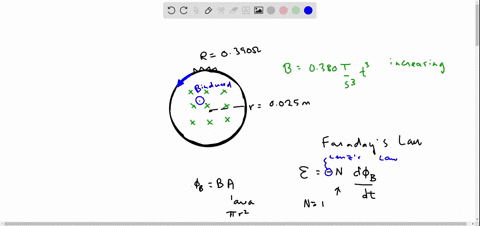

A circular loop of wire with radius $r=0.0250 \mathrm{~m}$ and resistance $R=0.390 \Omega$ is in a region of spatially uniform magnetic field, as shown in Fig. E29.22. The magnetic field is directed into the plane of the figure. At $t=0, B=0$. The magnetic field then begins increasing, with $B(t)=\left(0.380 \mathrm{~T} / \mathrm{s}^{3}\right) t^{3} .$ What is the current in the loop (magnitude and direction) at the instant when $B=1.33 \mathrm{~T} ?$

Key Concepts

Circular Loop Geometry

In problems involving a circular loop, the geometry of the loop is crucial in determining the area that the magnetic field penetrates. The area of a circular loop is calculated using the formula A = ?r^2, which directly affects the computation of magnetic flux and the resulting induced EMF.

Time-Varying Magnetic Field

A time-varying magnetic field refers to a magnetic field whose magnitude (and possibly direction) changes with time. Such variations lead to changes in magnetic flux through circuits, which in turn induce an electromotive force according to Faraday's Law.

Ohm's Law

Ohm's Law is a fundamental principle in electrical circuits that relates the voltage (or induced EMF), current, and resistance by the formula I = V/R. In contexts where an induced EMF drives a current through a resistor, Ohm's Law is used to determine the magnitude of the current.

Lenz's Law

Lenz's Law provides the direction of the induced current, stating that the induced current will flow in such a way that its own magnetic field opposes the change in the external magnetic flux that produced it. This principle ensures the conservation of energy in electromagnetic systems.

Faraday's Law

Faraday's Law of electromagnetic induction states that a changing magnetic flux through a closed loop will induce an electromotive force (EMF) in the loop. The induced EMF is proportional to the rate of change of magnetic flux and is mathematically expressed as EMF = -d?/dt, where the negative sign indicates the direction of the induced EMF as given by Lenz's law.

Magnetic Flux

Magnetic flux is a measure of the quantity of magnetic field passing through a given area. It is defined as the product of the magnetic field strength, the area it penetrates, and the cosine of the angle between the field direction and the perpendicular to the area. In problems involving induction, calculating the change in magnetic flux is essential.
