Question

A circular metal loop carries a current $I$ as shown. The points are all in the plane of the page and the loop is perpendicular to the page. Sketch the loop, and draw vector arrows at the points $A, B, C, D$, and $E$ to show the direction of the magnetic field at those points.

Name: Problem 4, Chapter 19: College Physics
Uploaded: 2021-10-08T16:34:05-08:00
Duration: 1 min 24 s
Channel: Ankur S
Description: A circular metal loop carries a current I as shown. The points are all in the plane of the page and the loop is perpendicular to the page. Sketch the loop, and draw vector arrows at the points A, B, C, D, and E to show the direction of the magnetic field at those points.

   A circular metal loop carries a current $I$ as shown. The points are all in the plane of the page and the loop is perpendicular to the page. Sketch the loop, and draw vector arrows at the points $A, B, C, D$, and $E$ to show the direction of the magnetic field at those points.

College Physics

lan Giambattista,… 2nd Edition

Chapter 19, Problem 4

Instant Answer

Solved by Expert Ankur S

10/08/2021

Step 1

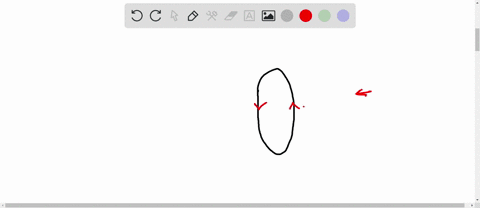

Since the loop is perpendicular to the page, we can represent it as a circle with a dot in the center to indicate that it is coming out of the page towards us. Now, let's draw the vector arrows to represent the direction of the magnetic field at points A, B, C, Show more…
