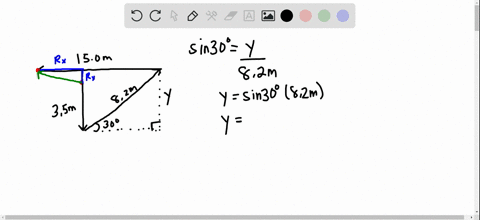

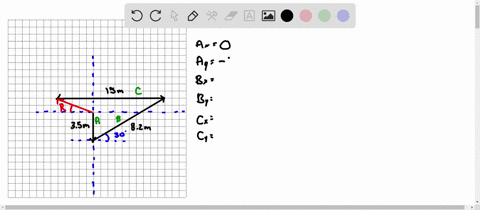

A dog searching for a bone walks 3.50 m south, then runs 8.20 m at an angle 30.0^∘ north of east

step 1 Here in this given problem, first of all, we draw the geographic directions, north, south, east

A dog searching for a bone walks 3.50 m south, then runs...

Key Concepts

Displacement

Displacement is a vector quantity that represents the change in position of an object, defined by both magnitude and direction. It is different from distance because it takes into account only the overall change in position, not the path traveled. In problems like this, displacement is determined by combining individual vector movements to arrive at a single, resultant vector that directly connects the starting and ending points.

Vector Decomposition

Vector decomposition involves breaking a vector into its horizontal and vertical components using trigonometric functions. This is crucial when working with vectors given at an angle, as it simplifies the process of vector addition by allowing each component to be handled separately. The use of sine and cosine functions helps convert a vector’s magnitude and direction into its x (horizontal) and y (vertical) components.

Vector Addition

Vector addition is the process of combining two or more vectors to obtain a resultant vector. This can be done either analytically, by summing up the components of the vectors, or graphically, by placing them head-to-tail. The resultant vector represents the overall effect of the combined individual vectors, reflecting the total displacement or force acting on an object.

Graphical Methods for Vector Representation

Graphical methods for vector representation involve drawing each vector to scale on a coordinate system and placing them head-to-tail to visualize their combined effect. This approach, such as the polygon method, provides an intuitive way to estimate the magnitude and direction of the resultant vector. It is especially useful for understanding the geometric relationships between different vector quantities.

Trigonometric Functions in Vectors

Trigonometric functions, particularly sine and cosine, are used in vector problems to relate the angles and magnitudes of vectors to their horizontal and vertical components. These functions are essential for converting a vector given in polar form (magnitude and angle) into its Cartesian components, thereby facilitating the process of vector addition and providing insight into the directional relationships between vectors.
