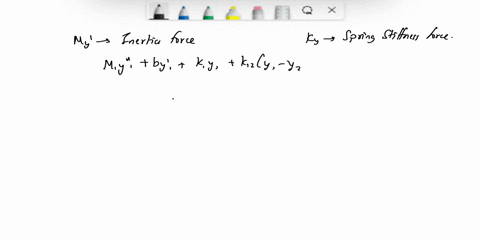

A dynamic vibration absorber is shown in Figure P2.2. This system is representative of many situations involving the vibration of machines containing unbalanced components. The parameters $M_2$ and $k_{12}$ may be chosen so that the main mass $M_1$ does not vibrate in the steady state when $F(t)=a \sin \left(\omega_0 t\right)$. Obtain the differential equations describing the system. Figure can't copy

Key Concepts

Dynamic Vibration Absorber

A dynamic vibration absorber is an attached secondary system designed to counteract undesired vibrations in a primary system. By introducing an additional mass and stiffness element tuned to the excitation frequency, it can significantly reduce or eliminate resonant vibrations in the main mass, thereby stabilizing the system.

Differential Equations of Motion

Differential equations of motion describe how forces acting on a system cause its displacements, velocities, and accelerations over time. They are derived from fundamental principles such as Newton’s second law, and in the context of vibration absorbers, these equations model the coupled dynamics between the primary system and the attached absorber.

Forced Vibration and Steady-State Response

Forced vibration refers to the response of a system when subjected to an external periodic force, such as a sinusoidal input. The steady-state response is the long-term behavior of the system after all transient effects have decayed. Analysis of the steady-state is crucial in vibration problems, as it reveals how the system oscillates under continuous forcing.

Tuning and Parameter Selection

Tuning involves selecting the appropriate parameters, like the absorber’s mass and stiffness, to achieve a desired dynamic behavior—in this case, ensuring that the primary mass does not vibrate in the steady state. Proper parameter selection is essential for effective vibration cancellation and for optimizing the performance of the absorber under specific excitation conditions.
