A helium-neon laser emits light that has a wavelength of 632.8 nm . The circular aperture throug

step 1 So for this problem, we're going to first need to find the angle that this aperture presents res

A helium-neon laser emits light that has a wavelength of...

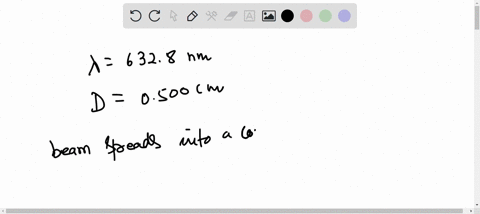

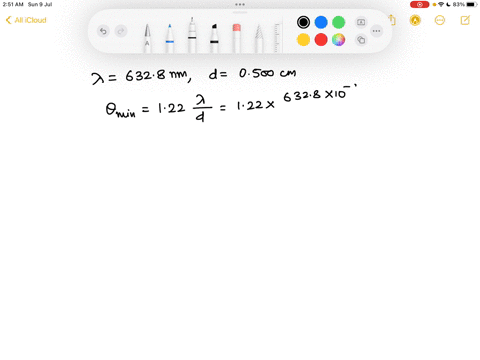

A helium-neon laser emits light that has a wavelength of $632.8 \mathrm{nm} .$ The circular aperture through which the beam emerges has a diameter of $0.500 \mathrm{cm} .$ Estimate the diameter of the beam $10.0 \mathrm{km}$ from the laser.

Key Concepts

Diffraction

Diffraction is the bending of waves around obstacles or apertures. When a beam of light passes through a small opening, it spreads out due to diffraction, which limits the resolution and defines the beam’s divergence. In optics, this phenomenon is critical for understanding how beams behave after leaving a source such as a laser.

Fraunhofer Diffraction

Fraunhofer diffraction is the far-field approximation of diffraction, applicable when the source and the observation screen are sufficiently far apart. It provides a framework to calculate the angular spread of light emerging from an aperture, enabling the estimation of beam diameter at large distances, as is done with laser beams.

Aperture Size and Wavelength Relationship

The relationship between the aperture size and the wavelength of light is key in determining the diffraction pattern. A smaller aperture relative to the wavelength produces a larger diffraction angle. This principle explains how the physical dimensions of a laser's emitting aperture affect the spreading of the beam over long distances.

Angular Spread (Divergence) of a Beam

The angular divergence of a beam due to diffraction can be approximated by a factor of the wavelength divided by the aperture size, adjusted by numerical factors (such as 1.22 for circular apertures). This parameter is essential in predicting how much a beam will expand as it propagates, which is crucial for estimating the beam diameter over long ranges.
