A hungry bear weighing 700 N walks out on a beam in an attempt to retrieve a basket of food hang

step 1 The situation here is as follows. You have got RX and RY here. Let's say at a distance X, you ha

A hungry bear weighing 700 N walks out on a beam in an...

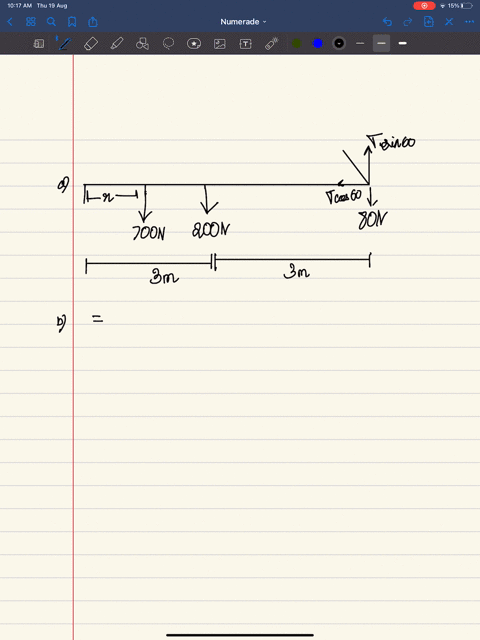

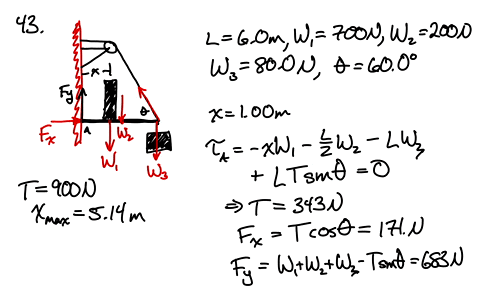

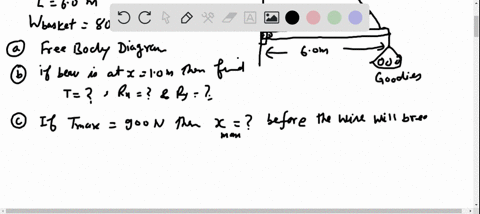

A hungry bear weighing 700 $\mathrm{N}$ walks out on a beam in an attempt to retrieve a basket of food hanging at the end of the beam (Fig. Pl2.37). The beam is uniform, weighs $200 \mathrm{N},$ and is 6.00 $\mathrm{m}$ long; the basket weighs 80.0 $\mathrm{N}$ . (a) Draw a free-body diagram for the beam. (b) When the bear is at $x=1.00 \mathrm{m},$ find the tension in the wire and the components of the force exerted by the wall on the left end of the beam. (c) What If? If the wire can withstand a maximum tension of $900 \mathrm{N},$ what is the maximum distance the bear can walk before the wire breaks?

Key Concepts

Reaction Forces at Supports

Reaction forces are the forces exerted by supports, walls, or other constraints that prevent the structure from moving. They counterbalance the applied loads and ensure that the overall force and moment balances of the system are maintained. Analyzing these forces is key to understanding the distribution of loads within a structure.

Torque and Moment Arms

Torque, also known as moment of force, is the measure of the rotational effect produced by a force acting at a distance from a pivot point. The moment arm is the perpendicular distance from the pivot point to the line of action of the force. In static problems, calculating torques is essential to ensure that the net moment about a chosen point is zero, thus ensuring rotational equilibrium.

Tension in a Cable

Tension refers to the pulling force transmitted along a cable, rope, or wire when it is subjected to forces. In many engineering applications, determining the tension in support cables is essential for assessing structural safety and performance, especially when cables are used to support beams or other structures in equilibrium.

Equilibrium Conditions

Equilibrium conditions require that the sum of all forces acting on a system must be zero, and the sum of all torques (or moments) about any pivot point must also be zero. These conditions are foundational in statics for analyzing whether a system at rest will remain at rest under the influence of various applied loads and reactions.

Free-Body Diagram

A free-body diagram is a simplified representation of an object or system where all forces and moments acting on it are isolated and depicted as vectors. This tool is crucial in mechanics to systematically analyze the effects of various external forces and supports on the object, and it helps in setting up the equations of equilibrium for both translational and rotational motions.
