A light ray travels inside a block of sodium fluoride that...

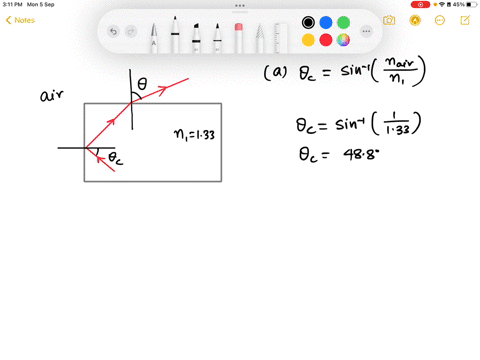

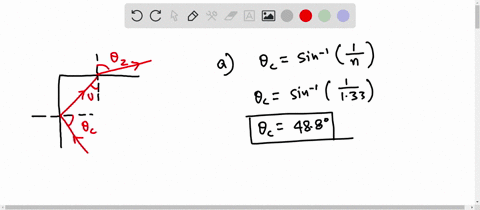

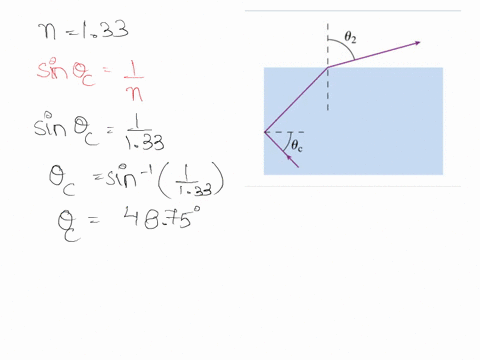

A light ray travels inside a block of sodium fluoride that has index of refraction $n=1.33$ as shown in Figure $\mathrm{P} 18.23 .$ The ray strikes the vertical wall at the critical angle, totally reflects, and then emerges into the air above the block. What is the angle $\theta_{2}$ at which the ray emerges?

Key Concepts

Snell's Law

Snell's Law is a fundamental principle in optics that describes how light rays change direction, or refract, when passing from one medium into another. It relates the sine of the angle of incidence to the sine of the angle of refraction, multiplied by the indices of refraction of the respective media. This law is essential for analyzing and predicting the behavior of light at interfaces between different materials.

Index of Refraction

The index of refraction is a measure of how much the speed of light is reduced inside a medium relative to its speed in a vacuum. It not only influences the bending of light according to Snell's Law but also plays a critical role in understanding various optical phenomena such as dispersion and reflection. In problems involving refraction, specifying the index of refraction for each medium is crucial to determine the angles at which light will travel.

Total Internal Reflection

Total Internal Reflection occurs when a light ray traveling from a denser medium to a less dense medium strikes the interface at an angle greater than the critical angle, resulting in all of the light being reflected back into the denser medium. This phenomenon is important in fiber optics and other optical devices, as it allows light to be confined within a medium without loss.

Critical Angle

The Critical Angle is defined as the minimum angle of incidence for which total internal reflection occurs. It is determined by setting the angle of refraction to 90 degrees in Snell's Law and solving for the incident angle. This concept is fundamental when analyzing scenarios where light transitions from a medium with a higher index of refraction to a lower one, as it dictates the boundary between refraction and complete reflection.
