A mobile is constructed of light rods, light strings, and...

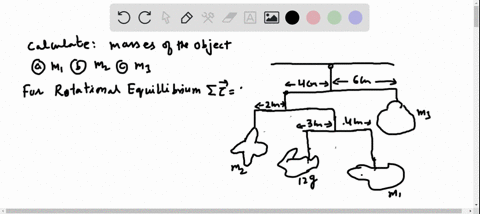

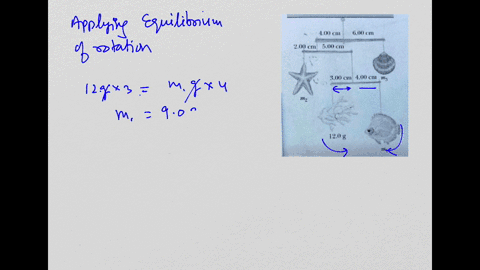

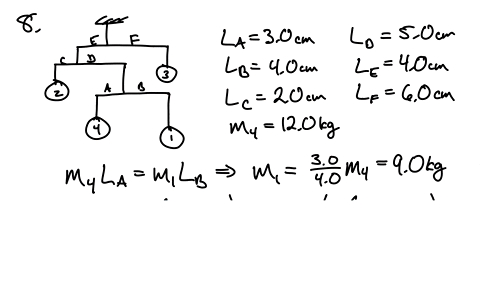

A mobile is constructed of light rods, light strings, and beach souvenirs as shown in Figure $\mathrm{P} 12.8$ . Determine the masses of the objects (a) $m_{1},(\mathrm{b}) m_{2},$ and $(\mathrm{c}) m_{3}$ .
GRAPH CANNOT COPY

Key Concepts

Free-Body Diagram

A free-body diagram is a simplified illustration that shows all external forces and moments acting on a single object or section of a structure. It helps isolate each component of the system so that the equilibrium equations (both for forces and torques) can be systematically applied to analyze and solve for unknown variables.

Static Equilibrium

Static equilibrium is the state in which a system experiences no net force or net torque, meaning all forces and moments (torques) balance each other. In the context of a mobile or any structure, this principle ensures that the structure remains at rest and does not rotate or translate, which is critical for determining unknown masses or forces in the system.

Torque (Moment) Balance

Torque balance involves ensuring that the sum of the moments (the product of force and distance from the pivot) about any point is zero for a system in equilibrium. This concept is used to relate the positions and weights of different objects so that the clockwise and counterclockwise moments cancel out, allowing for the calculation of unknown masses.

Negligible Weight of Components

In problems like this, parts such as light rods and light strings are assumed to have negligible weight compared to the objects being balanced. This assumption simplifies the calculations by ensuring that only the weights of the attached objects (e.g., the souvenirs) contribute significantly to the forces and moments, which is crucial when setting up the equations for static equilibrium.
