Name: Problem 31, Chapter 21: College Physics
Uploaded: 2019-11-26T11:25:31-08:00
Duration: 1 min 23 s
Channel: Salamat Ali

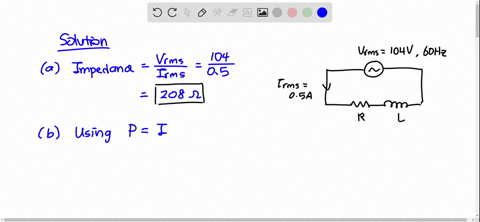

Description: A multimeter in an RL circuit records an rms current of 0.500 A and a 60.0 - Hz rms generator voltage of 104 V. A wattmeter shows that the average power delivered to the resistor is 10.0 W. Determine (a) the impedance in the circuit, (b) the resistance R , and (c) the inductance L.

A multimeter in an RL circuit records an rms current of 0.500 A and a 60.0 - Hz rms generator voltage of 104 V. A wattmeter shows that the average power delivered to the resistor is 10.0 W. Determine (a) the impedance in the circuit, (b) the resistance R , and (c) the inductance L.

Key Concepts

Impedance in AC Circuits

Impedance is the total opposition that a circuit presents to the flow of alternating current. It combines both the resistive component (which dissipates energy) and the reactive component (which stores and releases energy) into a single complex quantity. In AC analysis, impedance is key to understanding the phase relationship between voltage and current, and it is typically represented as a complex number or by its magnitude and phase angle.

RMS Values in AC Circuits

Root-Mean-Square (RMS) values are used to express the effective or equivalent DC values of alternating currents and voltages. RMS measurements allow for the proper calculation of power in AC circuits because they account for the fact that the instantaneous values of current and voltage vary sinusoidally over time.

Average Power in AC Circuits

The average power delivered in an AC circuit is calculated by multiplying the RMS voltage and current and the cosine of the phase angle between them, often written as P = V_rms × I_rms × cos(?). This concept is important in determining the actual power consumption in circuits that include both resistive and reactive components, where only the resistive part dissipates power as heat.

Inductive Reactance and Inductance

Inductive reactance is the opposition to change in current flow offered by an inductor in an AC circuit. It depends on the frequency of the AC signal and the inductance itself, typically expressed as X_L = 2?fL. This relationship is essential for understanding how inductors behave at different frequencies, affecting the overall impedance and phase relationships within the circuit.
