A parallel-plate capacitor has a charge Q and plates of area...

A parallel-plate capacitor has a charge Q and plates of area A. What force acts on one plate to attract it toward the other plate? Because the electric field between the plates is $E=Q / A \epsilon_{0},$ you might think the force is $F=Q E=Q^{2} / A \epsilon_{0}$ This conclusion is wrong because the field $E$ includes contributions from both plates, and the field created by the positive plate cannot exert any force on the positive plate. Show that the force exerted on each plate is actually $F=$ $Q^{2} / 2 A \epsilon_{0} .$ Suggestion: Let $C=\epsilon_{0} A / x$ for an arbitrary plate separation $x$ and note that the work done in separating the two charged plates is $W=\int F d x .$

Key Concepts

Force Derivation from Energy Methods

Instead of directly applying F = Q·E with the net field, energy methods provide a more precise approach by equating the work done to the change in stored energy. By calculating the derivative of energy with respect to the plate separation, one can derive the attractive force between the plates. This method accounts for the fact that only the field from the opposite plate contributes to the force, leading to the correct expression F = Q²/(2A??).

Capacitance of a Parallel-Plate Capacitor

A parallel-plate capacitor is composed of two conductive plates separated by a distance, with capacitance defined as the ability to store charge per unit voltage. The capacitance is given by C = ??A/x, where ?? is the vacuum permittivity, A is the area of the plates, and x is the separation between them. This concept forms the basis for understanding how physical geometry and material properties affect a capacitor's storage capacity.

Electrostatic Energy Storage

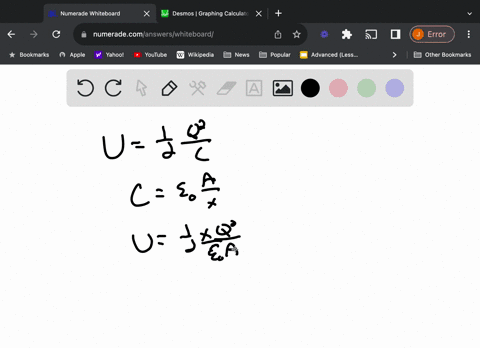

The energy stored in a capacitor is an important concept in electrostatics, and it is expressed as U = Q²/(2C) when the charge is fixed. This energy represents the work required to charge the capacitor and is crucial for analyzing how energy changes as the system's configuration is varied, such as in moving the plates apart or together.

Electric Field Contribution and Superposition

In a capacitor, the total electric field between the plates is a result of contributions from both plates. Due to the principle of superposition, each plate creates an electric field that, when combined, yields the net field in the gap. However, a plate does not exert force on itself; only the field due to the other plate contributes to the electrostatic force felt by a plate. This understanding is essential for correctly calculating the force on a plate.
