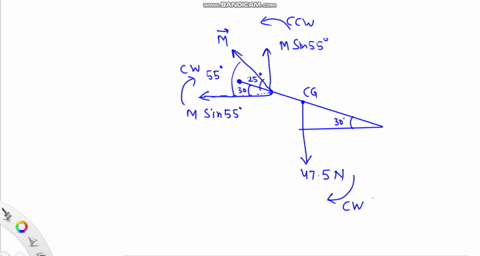

A person is sitting with one leg outstretched and stationary, so that it makes an angle of $30.0^{\circ}$ with the horizontal, as the drawing indicates. The weight of the leg below the knee is $44.5 \mathrm{N},$ with the center of gravity located below the knee joint. The leg is being held in this position because of the force $\overrightarrow{\mathbf{M}}$ applied by the quadriceps muscle, which is attached $0.100 \mathrm{m}$ below the knee joint (see the drawing). Obtain the magnitude of $\overrightarrow{\mathbf{M}}$

Key Concepts

Center of Gravity

The center of gravity is the point at which the entire weight of an object can be considered to act. This concept simplifies the analysis of gravitational forces and is vital in problems where the distribution of mass affects rotational equilibrium.

Lever Arm

The lever arm is the shortest (perpendicular) distance between the pivot point and the line along which the force acts. It plays a pivotal role in the calculation of torque, as a larger lever arm means that a given force will produce a greater turning effect.

Trigonometric Analysis in Mechanics

Trigonometric functions are used extensively in mechanics to resolve forces into components and relate angles to distances. This analysis is particularly important in situations where forces are applied at an angle, as it helps to determine the effective lever arm and thus the precise magnitude of the torque produced.

Static Equilibrium

Static equilibrium refers to the condition in which an object is at rest and the sum of all forces and torques acting on it is zero. This principle is essential for analyzing systems that do not accelerate, ensuring that every force is balanced by an opposing force or moment, thereby preventing both linear and rotational motion.

Torque (Moment of Force)

Torque is the rotational effect produced by a force acting at a distance from a pivot point. It is defined as the product of the force and the lever arm (the perpendicular distance from the pivot to the line of action of the force). Understanding torque is crucial for solving problems involving rotational balance and equilibrium.
