A physicist working for your company has proposed the following simple procedure for measuring the thermal conductivity of soil. An electrically heated sphere $6 \mathrm{~cm}$ in diameter is to be buried $30 \mathrm{~cm}$ below the surface of a very large box of the soil. The sphere will be maintained at $30^{\circ} \mathrm{C}$ while the laboratory air-conditioner maintains the surface of the soil at $20^{\circ} \mathrm{C}$. The power input to the heater required to maintain a steady state will be measured and Table $3.2$, item 7 used to calculate $k$. Evaluate the practicality of this procedure.

Key Concepts

Soil Heterogeneity and Environmental Factors

Soil is a complex, heterogeneous medium with properties that can vary spatially due to variations in moisture content, composition, and compaction. These variations mean that experimental measurements of soil thermal conductivity may not be universally representative. Additionally, environmental factors such as ambient temperature fluctuations and moisture movement can further complicate the steady-state conditions, making the proposed measurement method potentially less practical or accurate in field applications.

Experimental Design and Measurement Uncertainty

Experimental design in heat transfer studies entails careful planning to minimize sources of error and uncertainty. This includes ensuring uniform material properties, controlling environmental variables, and accurately measuring heat inputs and temperature differences. In small-scale or field measurements, such as those involving embedded heaters, issues like transient effects, sensor accuracy, and simplifications in the theoretical model can undermine the reliability of the results.

Thermal Conductivity

Thermal conductivity is a material property that quantifies a material's ability to conduct heat. It is determined by the ratio of the heat flux to the temperature gradient within a material and is a critical parameter in the study of heat transfer. In experimental settings, precise measurements of temperature differences and applied power are required to accurately assess thermal conductivity, especially in heterogeneous materials like soil.

Steady-State Heat Conduction

Steady-state heat conduction refers to a condition where the temperature distribution within a material does not change with time. Achieving a steady state is essential for reliable thermophysical measurements because it ensures that the thermal gradients and heat flow are stable. In experimental designs, the time required to reach steady state and the proper control of boundary conditions are crucial factors that can significantly influence the accuracy of the measurement.

Boundary Conditions in Heat Transfer

Boundary conditions define the thermal environment at the surfaces and interfaces of the material being studied. They are integral to solving the heat conduction equations and determining the resulting temperature distribution. In practical experiments, such as those involving a heated object embedded in soil, maintaining fixed temperature boundaries or accounting for external temperature influences can be challenging, and any deviations can lead to errors in calculating thermal conductivity.

Transcript

00:02 In this question, it is about heat transfer using through radiation.

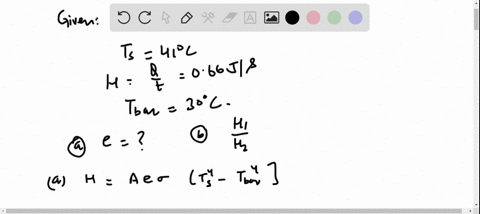

00:07 Okay, so in this case we have a box and then inside there's a sphere and then the sphere has a radius of 3 .2 cm.

00:19 So the inner wall is 30 degree celsius and this surface is 41 degrees celsius.

00:29 Right so we have a heater inside the sphere that supplies a rate of 0 .66 watts to maintain a constant temperature of 41 degrees celsius so we want to find out the immissivity of the lateral sphere okay in part a then part b we'll find the power required to maintain 82 degrees celsius so to do part a, we'll be using h -net is equal to a -e -s -s -t to the 4 minus t -s to the 4.

01:17 T -s is the temperature of the surrounding.

01:20 And so since we are looking for remissivity, which is e, so it's equal to h -net, divide by a -sigma, t to the four minus t s to the four okay so h net is equal to 0 .66 what a is for pi r square the r the r is 3 .2 cm okay so you have 3 .2 times 10 to the negative two square four pi r square t is 273 3 plus 41 this is 314 kelvin and then ts is equal to 273 plus 30 which is 303 kelvin okay so substitute the numbers okay you have 0 .66 divide by 4 pi times 3 .2 times 10 to the negative 2 square times 5 .67 times 10 to the negative 8 this is the sigma which is the stefan bussman constant and then the t which is 314 to the 4 minus 303 to the 4 okay and you calculate this you get 0 .7 0 .0 okay so this is the emissivity of the metal sphere okay then in part b we want to find the power required to maintain the temperature at 82 degrees celsius.

03:09 Okay, so again, we're using the same formula as before...
