A piston-cylinder device initially contains 50 L of liquid water at 40^∘ C and 200 kPa. Heat is

step 1 Hi friends here it is given initial volume 50 liter initial temperature 50 degrees Celsius initi

A piston-cylinder device initially contains 50 L of liquid...

A piston-cylinder device initially contains $50 \mathrm{~L}$ of liquid water at $40^{\circ} \mathrm{C}$ and $200 \mathrm{kPa}$. Heat is transferred to the water at constant pressure until the entire liquid is vaporized. (a) What is the mass of the water? (b) What is the final temperature? (c) Determine the total enthalpy change. (d) Show the process on a $T$ -U diagram with respect to

A piston-cylinder device initially contains $50 \mathrm{~L}$ of liquid water at $40^{\circ} \mathrm{C}$ and $200 \mathrm{kPa}$. Heat is transferred to the water at constant pressure until the entire liquid is vaporized.

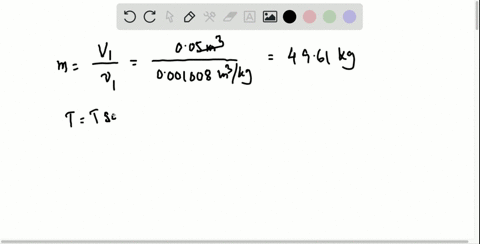

(a) What is the mass of the water?

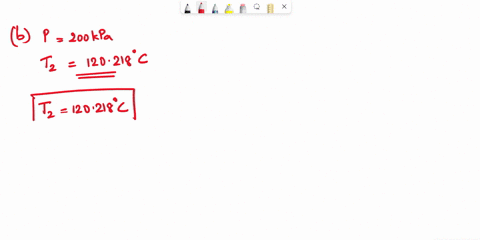

(b) What is the final temperature?
(c) Determine the total enthalpy change.
(d) Show the process on a $T$ -U diagram with respect to

Key Concepts

Process Representation on Temperature-Internal Energy Diagram

A Temperature-Internal Energy (T-U) diagram is a graphical representation that plots the relationship between temperature and internal energy for a substance. This diagram is useful in visualizing the energy changes during processes such as heating, cooling, or phase transitions. It provides insight into the regions of energy transfer and the corresponding state changes occurring in the system.

Enthalpy Change in Phase Change

Enthalpy is a key thermodynamic property that represents the total heat content of a system. The change in enthalpy during a phase change, particularly at constant pressure, reflects the latent heat required for the transformation. Understanding enthalpy change is essential for energy balance calculations and for designing systems involving heating or cooling.

Mass Calculation from Specific Volume

Calculating the mass of a substance in a confined space often involves using the relationship between total volume and specific volume. The specific volume is defined as the volume occupied per unit mass, and by rearranging the formula, the mass can be determined as the ratio of the total volume to the specific volume, which is fundamental in property evaluations.

Phase Change and Saturation Properties

Phase change refers to the transformation of a substance from one state of matter to another, such as liquid to vapor. In thermodynamics, understanding saturation properties—like the saturation temperature and pressure—is crucial because they identify the boundaries between the liquid and vapor phases, and they help in determining energy requirements during phase transitions.

Piston-Cylinder Device

A piston-cylinder device is a common component in engineering systems where a working fluid is confined within a vessel that has a movable piston. This setup is often used to study and control processes involving work interactions, such as expansion or compression, and to analyze thermodynamic properties under controlled conditions.

Constant Pressure Process

A constant pressure process is one in which the pressure remains fixed throughout the transformation. This type of process is widely studied because it closely approximates many practical scenarios. Heating a substance at constant pressure, especially when a phase change occurs, requires careful analysis of how energy input affects temperature, volume, and other thermodynamic properties.
