A ray of light traveling through air encounters a 1.2-cm -thick sheet of glass at a 35^∘ angle o

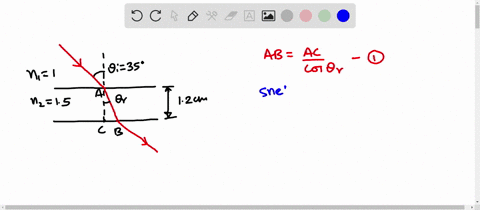

step 1 In this question, we have a 1 .2 cm thick sheet of glass. Okay. And then there's a light as inci

A ray of light traveling through air encounters a 1.2-cm...

A ray of light traveling through air encounters a $1.2-\mathrm{cm}$ -thick sheet of glass at a $35^{\circ}$ angle of incidence. How far does the light ray travel in the glass before emerging on the far side?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Angle of Incidence

The angle of incidence is the angle between the incoming ray of light and the normal (a line perpendicular) at the point of incidence on a surface. This concept is critical in determining how much the light will bend when it moves from one medium to another governed by Snell's Law.

Snell's Law

Snell's Law governs the relationship between the angles of incidence and refraction when light passes between two media with different refractive indices. It states that the product of the refractive index and the sine of the angle of incidence in the first medium is equal to the corresponding product in the second medium, which is essential for determining the bending of the light ray as it enters a new medium.

Geometry of Light Propagation in Media

When light refracts into a medium, the distance it travels within that medium is longer than the thickness of the medium if it enters at an angle. By using simple trigonometry, particularly the cosine function, one can relate the physical thickness of the medium to the effective path length of the light within the medium. This geometric relationship is key in determining distances traveled in situations involving non-perpendicular incidences.
