a. Referring to Fig. 33, determine the transition capacitance at reverse-bias potentials of $-25$ $V$ and $-10 \mathrm{~V}$. What is the ratio of the change in capacitance to the change in voltage? b. Repeat part (a) for reverse-bias potentials of $-10 \mathrm{~V}$ and $-1 \mathrm{~V}$. Determine the ratio of the change in capacitance to the change in voltage. c. How do the ratios determined in parts (a) and (b) compare? What does this tell you about which range may have more areas of practical application?

a. Referring to Fig. 33, determine the transition capacitance at reverse-bias potentials of $-25$ $V$ and $-10 \mathrm{~V}$. What is the ratio of the change in capacitance to the change in voltage?
b. Repeat part (a) for reverse-bias potentials of $-10 \mathrm{~V}$ and $-1 \mathrm{~V}$. Determine the ratio of the change in capacitance to the change in voltage.
c. How do the ratios determined in parts (a) and (b) compare? What does this tell you about which range may have more areas of practical application?

Key Concepts

Junction Capacitance

Junction capacitance, also known as depletion or transition capacitance, arises from the charge separation in the depletion region of a semiconductor junction when reverse biased. It is inversely proportional to the width of the depletion region, which increases with greater reverse-bias voltage. This property is crucial for understanding how diodes behave at different bias levels.

Voltage-Dependent Capacitance

The capacitance observed in semiconductor junctions is strongly influenced by the applied reverse-bias voltage. As the voltage increases, the depletion layer widens, causing the capacitance to decrease. Analyzing the change in capacitance with respect to voltage (dC/dV) is essential to characterize the junction’s behavior over different operating conditions.

Capacitance-Voltage (C-V) Characteristics

The C-V curve is a fundamental tool for characterizing semiconductor junctions. This relationship helps in determining how the capacitance changes across various voltage ranges, providing insights into the doping profiles and junction properties. Different segments of the C-V curve often highlight how the device might perform in different practical applications.

Practical Application Analysis

Comparing the ratios of change in capacitance to change in voltage over different voltage ranges allows for the identification of regions where the device operates most efficiently. Such analysis is instrumental in selecting the appropriate voltage range for practical applications, particularly when stability and performance at specific bias conditions are required.

Transcript

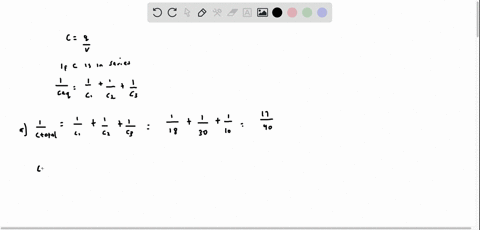

00:03 So in this question, we're asked to find in part a the equivalent capacitance of all of these capacitors in between a, b.

00:15 So in this circuit, we have a 7 .5 nanofarad capacitor connected to a 6 .5 nanofaric capacitor in parallel.

00:26 In addition to those, in parallel, we also have three more capacitors that are wired to one another in series.

00:33 So in terms of finding the equivalent capacitance of this entire system, it's easiest to start with the three that are in series.

00:44 We can find the equivalent capacitance for those three, and then we'll find the equivalent capacitance of all the capacitors in total.

00:55 So for capacitors in series, we have an equivalent capacitance formula that looks something like this.

01:05 So we're using all the reciprocals of these capacitancees.

01:08 And my advice is to keep all of these values in terms of nanofarads and then you can expect the answer to be also in nanofarads as well.

01:26 To complete this fraction addition you can create a common denominator, 90 would work, but i think it might be easier just to plug these values into the calculator.

01:39 So 1 over 18 plus 1 over 30 plus 0 .1.

01:47 And make sure you're keeping a few decimal places while you're actually going through the steps of this calculation.

01:54 So we get 0 .189.

01:59 That's not the equivalent capacitance, though.

02:02 The equivalent capacitance of these three is 1 over 0 .1889.

02:10 So we have to flip everything around.

02:12 We have to create a reciprocal of the left -hand side and a reciprocal of the right -hand side.

02:19 So the final equivalent capacitance of the first three in series is 5 .29 nanofarads.

02:28 Then we can imagine that we replace the three capacitors that are in series with one capacitor of 5 .29 nanofarads.

02:39 So now we have three capacitors, that are in parallel.

02:43 And we can calculate an equivalent resistance for those, which will be the equivalent resistance or the equivalent capacitance for those and that will be what we're trying to find.

02:58 So the equivalent capacitance for capacitors in parallel is found simply by adding them all up.

03:09 So that's kind of nice.

03:12 And so once we do that, we get a final answer, the equivalent capacitance for all five.

03:20 Of these capacitors is 19 .29 nanofarads.

03:28 Okay, let's look at part b.

03:33 So in part b, we're asked to find the charge that is stored in all of these capacitors.

03:39 Well, we know that charge on a capacitor is equal to the capacitance times the voltage...
