A regular tetrahedron has six edges of length a. A force 𝐏...

Key Concepts

Regular Tetrahedron

A regular tetrahedron is a three-dimensional solid composed of four congruent equilateral triangular faces with all six edges equal in length. Its inherent symmetry makes it a useful shape in problems of geometry and statics, where spatial relationships and distances between points, lines, and planes must be clearly understood and calculated.

Moment of a Force about an Axis

The moment of a force about an axis is a measure of the force’s tendency to produce rotation about that axis. It is computed as the product of the force magnitude and the perpendicular distance from the axis to the line of action of the force. This concept is fundamental in mechanics and is often determined using the vector cross product for finding the effective moment arm.

Vector Cross Product in Moment Calculations

The vector cross product provides a method for calculating the moment (or torque) vector by multiplying the position vector (from the axis or point of rotation to the line of action of the force) with the force vector. The magnitude of the cross product gives the moment's intensity, while its direction follows the right-hand rule, indicating the axis of rotation.

Perpendicular Distance

The perpendicular distance is the shortest distance from the axis of rotation (or the line about which the moment is being calculated) to the line of action of the force. This distance is crucial because the moment is maximized when the force acts perpendicular to the lever arm, and it must be accurately determined using geometric relationships in three-dimensional space.

Transcript

00:01 In this question, we have a regular tetrahedron and we want to find the moments of p about hoa and the force p is directed along the hbc.

00:11 So to do this problem, first we need to use the definition of the moment about the hoa.

00:25 So the moment oa is equal to lambda oa, which is the unit vector from o to a and then dots with r c relative to o cross p.

00:44 So there are three things we need to find.

00:50 So we want to find the unit vector along oa first.

00:56 So we are going to draw the x, z plane.

01:07 So we look at the triangle obc.

01:10 And then this is where a is and then this is 30 degrees okay and then you have okay so this is the x component of oa and then this is the z components of oa okay so from the diagram from triangle obc the x component of oa is a over two.

02:03 The z component of oa is oax, engine 30 degrees.

02:15 Okay, put in the numbers.

02:21 This is what you get, a over to root three.

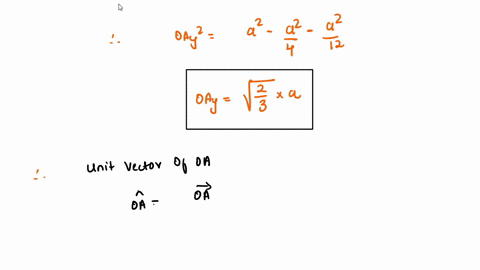

02:25 To find oy, the y component of oa, it will be using pyrid algorithm theorem okay or a square is equal to oa the x component square plus the y component square plus the z component square okay so this is equal to a square this is a square over four plus oh a y square plus a square over four times 3.

03:10 So, oa, the y component is equal to a square minus a square over 4 minus a square over 12 square root and get a times 2 over 3, square root of 2 over 3.

03:28 Okay, so we have the position vector of point a relative to 0.

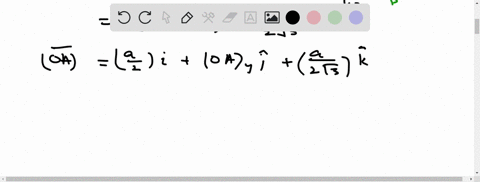

03:38 So this is equal to a over 2 i heads plus a times root 2 over 3 j heads plus a over 2 root 2 root 3 k heads okay so we have our lambda a 0 2a so this is just divide by a so you have half i plus root 2 over 3 j plus 1 over 2 root 3 okay okay then the next thing is to find the vector p okay or you can first write down the position vector of c relative to o is just a times i -hat okay the next thing we need is the vector p okay so we look at the obc triangle again like this is a okay so the unit vector bc okay so from the diagram you can actually deduce that lambda bc is equal to half i had minus okay square root 3 over 2 j hat okay so how do i know that is that so you have this is that so you is a over 2 then this is a so this length would be square root 3 over 2 a okay since we are only interested in the unit vector it will be half i -hat minus square root 3 over 2 j heads so the vector p will be p the magnitude of p times the unit vector you see so you have p over 2 i heads minus root 3 j heads, okay? now you are ready to use the definition.

06:08 Okay, so we call the m -o -a is equal to lambda -o -a.

06:14 Dot r -c -slash -o cross -p...
