A series circuit has an inductor of 0.2 henry, no resistance...

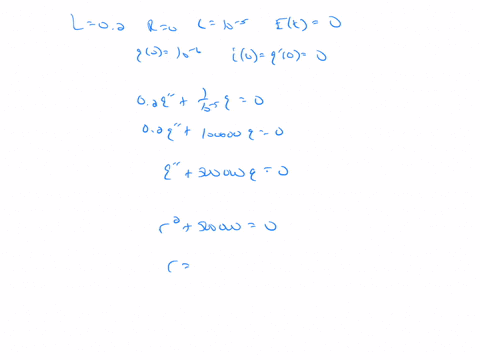

A series circuit has an inductor of 0.2 henry, no resistance and a capacitor of $10^{-5}$ farad. The initial charge on the capacitor is $10^{-6}$ coulomb and there is no initial current. Find the charge on the capacitor and the current at any time $t .$ Find the amplitude and phase shift of the charge function. (See exercise 21 in section $15.1 .)$

Key Concepts

Angular Frequency

Angular frequency (?) is a key parameter in describing the rate at which oscillations occur. In an LC circuit, ? is given by the formula ? = 1/?(LC), which directly ties the frequency of oscillation to the values of the inductor and capacitor. This concept is critical for determining not only the period of the oscillatory motion but also for linking the circuit’s physical properties with its temporal behavior.

Initial Conditions

Initial conditions, such as the initial charge on the capacitor and the initial current (or initial rate of change of charge), determine the specific form of the oscillatory solution. They are used to calculate characteristics like the amplitude and phase shift of the sinusoidal function that models the charge and current over time. Understanding how to apply initial conditions is essential for solving differential equations that describe physical systems.

LC Circuit

An LC circuit is a system composed of an inductor (L) and a capacitor (C) that can exhibit oscillatory behavior. In an ideal LC circuit, energy oscillates between the magnetic field of the inductor and the electric field of the capacitor, resulting in undamped sinusoidal oscillations. This concept is fundamental in electronics and demonstrates how energy storage and exchange in reactive components lead to periodic behaviors.

Simple Harmonic Motion

The oscillatory behavior of an ideal LC circuit is mathematically analogous to simple harmonic motion. The governing second?order differential equation yields sine and cosine solutions, representing the sinusoidal variation of both charge and current. This analogy allows one to apply principles and mathematical techniques from the study of mechanical oscillators to analyze electrical circuits.
