A small block with mass 0.0400 kg is moving in the x y -plane. The net force on the block is de

step 1 Consider a small block with a mass of 0 .04 kilograms that is moving in the xY plane. That force

A small block with mass 0.0400 kg is moving in the x y...

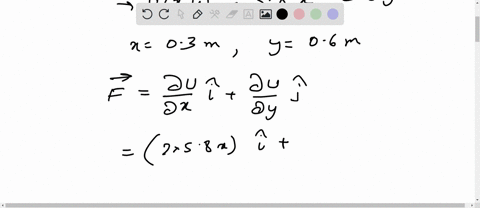

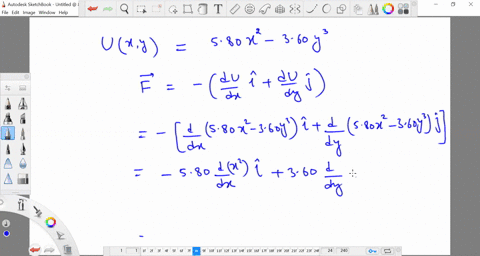

A small block with mass $0.0400 \mathrm{~kg}$ is moving in the $x y$ -plane. The net force on the block is described by the potentialenergy function $U(x, y)=\left(5.85 \mathrm{~J} / \mathrm{m}^{2}\right) x^{2}-\left(3.65 \mathrm{~J} / \mathrm{m}^{3}\right) y^{3} .$ What are the magnitude and direction of the acceleration of the block when it is at the point $(x=0.280 \mathrm{~m}, y=0.570 \mathrm{~m}) ?$

A small block with mass $0.0400 \mathrm{~kg}$ is moving in the $x y$ -plane. The net force on the block is described by the potentialenergy function $U(x, y)=\left(5.85 \mathrm{~J} / \mathrm{m}^{2}\right) x^{2}-\left(3.65 \mathrm{~J} / \mathrm{m}^{3}\right) y^{3} .$ What are
the magnitude and direction of the acceleration of the block when it is at the point $(x=0.280 \mathrm{~m}, y=0.570 \mathrm{~m}) ?$

Key Concepts

Potential Energy Function

A potential energy function expresses the stored energy of a system as a function of its spatial coordinates. In conservative systems, this function is used to determine the force acting on an object by taking its negative gradient.

Conservative Forces

Conservative forces are forces for which the work done in moving an object between two points is independent of the path taken. Such forces can be derived from a scalar potential energy function, simplifying the analysis of the motion.

Gradient and Negative Gradient

The gradient of a function is a vector representing the rate and direction of the steepest increase of that function. The negative gradient indicates the direction in which the function decreases most rapidly, providing the force vector in conservative force fields.

Newton's Second Law of Motion

Newton's second law establishes the relationship between force, mass, and acceleration (F = ma). It is fundamental in connecting the computed force from the potential energy function to the resulting acceleration of an object.

Vector Calculus in Force Analysis

Vector calculus is critical in physics when working in multiple dimensions. In this context, it allows one to compute partial derivatives to obtain the components of the force vector, and subsequently, using Newton's second law, to determine the acceleration vector in the plane.
