A solenoid is designed to produce a magnetic field of 0.0270 T at its center. It has radius 1.4

step 1 Part A of the given problem, the main tick field at the center of a solenoid, let's say we have

A solenoid is designed to produce a magnetic field of 0.0270...

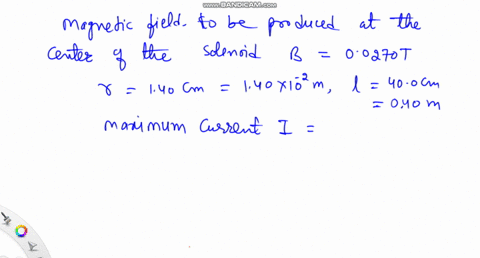

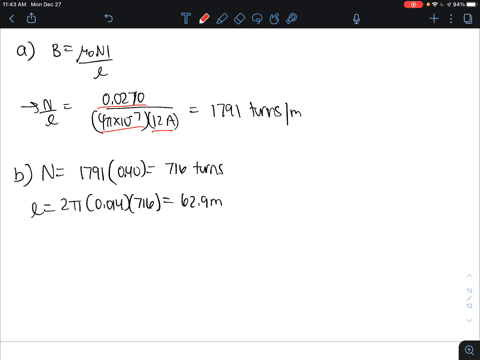

A solenoid is designed to produce a magnetic field of $0.0270 \mathrm{~T}$ at its center. It has radius $1.40 \mathrm{~cm}$ and length $40.0 \mathrm{~cm},$ and the wire can carry a maximum current of 12.0 A. (a) What minimum number of turns per unit length must the solenoid have? (b) What total length of wire is required?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Geometric Considerations in Solenoid Design

In addition to the magnetic field requirements, the geometry of the solenoid, such as its radius and total length, plays an important role in determining the physical parameters of the coil. Specifically, the total length of the wire needed is calculated by multiplying the number of turns by the circumference of each turn (which depends on the solenoid’s radius). This connection between geometry and electrical properties is fundamental in the practical design and construction of solenoids.

Turn Density

Turn density is defined as the number of turns per unit length of the solenoid. It is a crucial parameter because it directly influences the magnetic field strength according to the relation n = B/(?? I). Adjusting the turn density allows for control over the magnetic field produced, which is key in designing electromagnets for specific applications.

Magnetic Field in a Solenoid

This concept refers to how a solenoid produces a nearly uniform magnetic field inside its coils. The magnetic field is given by the equation B = ?? n I, where B is the magnetic field, ?? is the permeability of free space, n is the number of turns per unit length, and I is the current. It is a direct application of Ampère's law assuming the solenoid is long enough for edge effects to be negligible.
