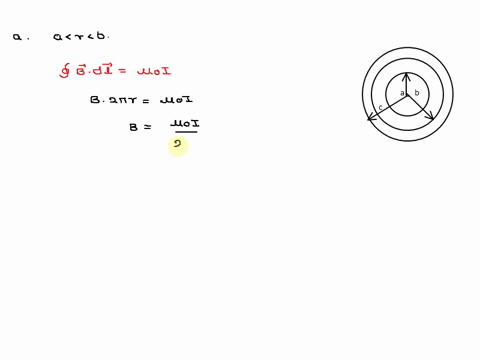

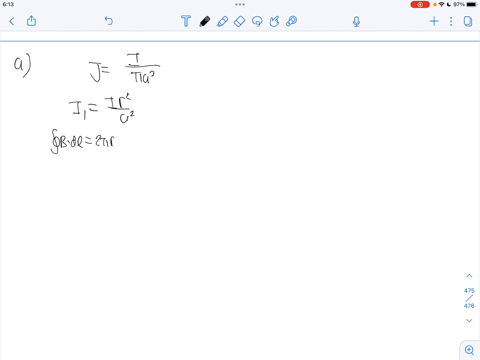

A solid conductor with radius $a$ is supported by insulating disks on the axis of a conducting tube with inner radius $b$ and outer radius $c$ (Fig. E28.39). The central conductor and tube carry equal currents $I$ in opposite directions. The currents are distributed uniformly over the cross sections of each conductor. Derive an expression for the magnitude of the magnetic field (a) at points outside the central, solid conductor but inside the tube $(a<r<b)$ and $(b)$ at points outside the tube $(r>c)$

A solid conductor with radius $a$ is supported by insulating disks on the axis of a conducting tube with inner radius $b$ and outer radius $c$ (Fig. E28.39). The central conductor and tube carry equal currents $I$ in opposite directions. The currents are distributed
uniformly over the cross sections of each conductor. Derive an expression for the magnitude of the magnetic field (a) at points outside the central, solid conductor but inside the tube $(a<r<b)$ and $(b)$ at points outside the tube $(r>c)$

Key Concepts

Superposition Principle

The superposition principle in electromagnetism states that the net magnetic field created by multiple sources is the vector sum of the magnetic fields produced by each source individually. This is applied when analyzing the combined effects of currents in both the central conductor and the surrounding tube, especially when the currents are equal in magnitude but flow in opposite directions.

Ampere's Law

Ampere's Law relates the line integral of the magnetic field along a closed loop to the total current passing through the area enclosed by that loop. This principle is applied to calculate the magnetic field in regions around current-carrying conductors by choosing a symmetric closed path that simplifies the evaluation of the integral.

Uniform Current Distribution

When current is distributed uniformly over the cross section of a conductor, the current density can be calculated by dividing the total current by the area of the conductor. This concept is crucial for determining the amount of current enclosed by an Ampere loop when the loop does not enclose the full cross-sectional area.

Cylindrical Symmetry

Cylindrical symmetry arises in problems involving long, straight conductors such as wires and tubes. It allows the assumption that the magnetic field is tangential and has the same magnitude at every point along a circular path centered on the axis, thereby simplifying the integration required in Ampere’s Law.
