A steel cable 3.00 cm^2 in cross-sectional area has a mass of 2.40 kg per meter of length. If 50

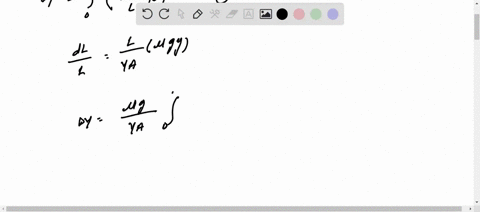

step 1 Here we have d l over l equals f over y a Now force is proportional to the weight of the System

A steel cable 3.00 cm^2 in cross-sectional area has a mass...

A steel cable 3.00 $\mathrm{cm}^{2}$ in cross-sectional area has a mass of 2.40 $\mathrm{kg}$ per meter of length. If 500 $\mathrm{m}$ of the cable is hung over a vertical cliff, how much does the cable stretch under its own weight? Take $Y_{\text { steel }}=2.00 \times 10^{11} \mathrm{N} / \mathrm{m}^{2}$ .

Key Concepts

Young's Modulus

Young's Modulus is a fundamental property of materials that quantifies their stiffness. It defines the ratio of tensile stress (force per unit area) to tensile strain (relative deformation) within the elastic limit of the material, determining how much a material will stretch or compress under a given load.

Stress and Strain

Stress is the force applied per unit area while strain is the resulting relative change in length. The relationship between them, governed by Hooke's Law in the elastic regime, is linear, and the constant of proportionality is Young’s modulus, which indicates how much deformation occurs under a specific load.

Distributed Load and Integration

When a structural element is subjected to its own weight, the load is continuously distributed along its length. To determine the overall extension, one must integrate the contributions to elongation from each infinitesimal segment of the cable, which involves considering the variable tension that develops due to the cumulative weight acting on each segment.

Linear Density

Linear density is the mass per unit length of an object and plays a critical role in analyzing its behavior under self-weight. It allows the weight of any segment of the material to be calculated by multiplying the linear density by the gravitational acceleration and the segment's length, which is essential for setting up and solving integration problems in elasticity.
