A steel rod 0.350 m long and an aluminum rod 0.250 m long, both with the same diameter, are plac

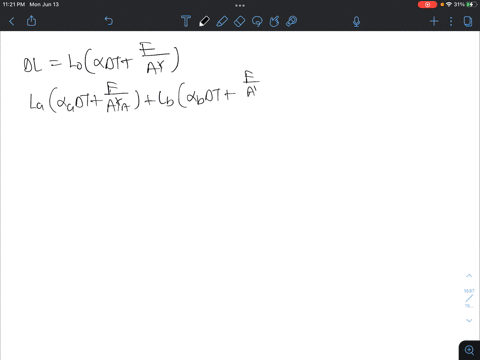

step 1 Hi everyone, this is the problem based on thermal stress and thermal stress is to find as m smal

A steel rod 0.350 m long and an aluminum rod 0.250 m long,...

A steel rod 0.350 $\mathrm{m}$ long and an aluminum rod 0.250 $\mathrm{m}$ long, both with the same diameter, are placed end to end between rigid supports with no initial stress in the rods. The temperature of $f$ the rods is now raised by 60.0 $\mathrm{C}^{\circ}$ . What is the stress in each rod? (Hint: The length of the combined rod remains the same, but the lengths of the individual rods do not. See Problem $17.89 .$ )

Key Concepts

Thermal Expansion

Thermal expansion is the tendency of a material to change its dimensions in response to a change in temperature. The degree to which a material expands or contracts is characterized by its coefficient of thermal expansion. This concept is fundamental in understanding how materials behave under temperature changes and how free expansion would occur in the absence of external constraints.

Thermal Stress

Thermal stress arises when a material that is subject to thermal expansion or contraction is restrained from expanding freely. The constraint forces the material to develop internal stresses to maintain the imposed dimensions, leading to stress that is proportional to the difference between the free thermal strain and the actual strain. It is an important factor in designing structures and components that operate under varying temperatures.

Young's Modulus

Young's modulus, or the elastic modulus, is a measure of a material's stiffness. It quantifies the relationship between stress (force per unit area) and strain (relative deformation) in the elastic region of a material. In the context of thermal stress, Young's modulus is used to relate the mechanical strain induced by the stress to the corresponding stress level, helping to determine how much a material will resist deformation under load.

Strain Compatibility in Composite Systems

In a system where different materials are joined together and subjected to temperature changes, such as composite rods, the total deformation must satisfy compatibility conditions. Even if the individual parts would expand differently if unrestrained, when they are constrained to a common overall length, their individual expansions or contractions must sum to that overall change. This compatibility leads to the development of thermal stresses in each component based on their respective material properties.
