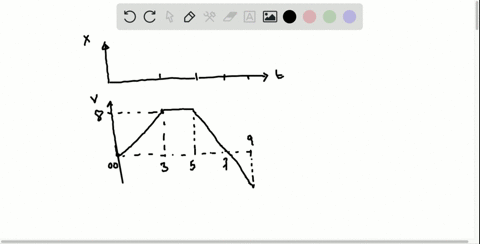

A student drives a moped along a straight road as described by the velocity-versus-time graph in Figure P2.54. Sketch this graph in the middle of a sheet of graph paper. (a) Directly above your graph, sketch a graph of the position versus time, aligning the time coordinates of the two graphs. (b) Sketch a graph of the acceleration versus time directly below the $v_{x}-$ graph, again aligning the time coordinates. On each graph, show the numerical values of $x$ and $a_{x}$ for all points of inflection. (c) What is the acceleration at $t=6 \mathrm{s} ?$ (d) Find the position (relative to the starting point) at $t=6$ s. (e) What is the moped's final position at $t=9 \mathrm{s} ?$ (FIGURE CANT COPY)

A student drives a moped along a straight road as described by the velocity-versus-time graph in Figure P2.54. Sketch this graph in the middle of a sheet of graph paper.
(a) Directly above your graph, sketch a graph of the position versus time, aligning the time coordinates of the two graphs. (b) Sketch a graph of the acceleration versus time directly below the $v_{x}-$ graph, again aligning the time coordinates. On each graph, show the numerical values of $x$ and $a_{x}$ for all points of inflection. (c) What is the acceleration at $t=6 \mathrm{s} ?$ (d) Find the position (relative to the starting point) at $t=6$ s. (e) What is the moped's final position at $t=9 \mathrm{s} ?$
(FIGURE CANT COPY)

Key Concepts

Inflection Points in Motion Graphs

Inflection points on a motion graph, particularly on a position-time graph, indicate where the curvature changes sign, corresponding to a change in the acceleration. Identifying these points is important for understanding changes in the nature of the motion.

Acceleration-Time Graph

An acceleration versus time graph plots how the acceleration of an object changes over time. It provides insight into the rate of change of velocity. The graph can be derived by differentiating the velocity function, and it helps identify moments of constant or changing acceleration.

Differentiation and Integration in Kinematics

In kinematics, differentiation and integration are key mathematical tools. Differentiation is used to obtain velocity from the position function and acceleration from the velocity function, while integration is used to determine displacement from the velocity function.

Velocity-Time Graph

A velocity versus time graph shows the object's speed and direction as it changes over time. The slope at any point on this graph represents the instantaneous acceleration, and the area under the curve between two times gives the displacement during that interval.

Kinematics Graphs

Kinematics involves the study of motion through graphs that represent position, velocity, and acceleration as functions of time. Understanding these graphs allows one to analyze how an object moves without necessarily knowing the underlying forces, by interpreting slopes and areas under curves.

Position-Time Graph

A position versus time graph indicates how an object’s location changes over time. Its slope corresponds to the instantaneous velocity. Sketching a position-time graph from a velocity-time graph involves integrating the velocity function, allowing one to determine relative displacement at different moments.
