Description: A swim mask has a pocket of air between your eyes and the flat glass front. a. If you look at a fish while swimming underwater with a swim mask on, does the fish appear closer or farther than it really is? Draw a ray diagram to explain. b. Does the fish see your face closer or farther than it really is? Draw a ray diagram to explain.

A swim mask has a pocket of air between your eyes and the flat glass front. a. If you look at a fish while swimming underwater with a swim mask on, does the fish appear closer or farther than it really is? Draw a ray diagram to explain. b. Does the fish see your face closer or farther than it really is? Draw a ray diagram to explain.

A swim mask has a pocket of air between your eyes and the flat glass front.

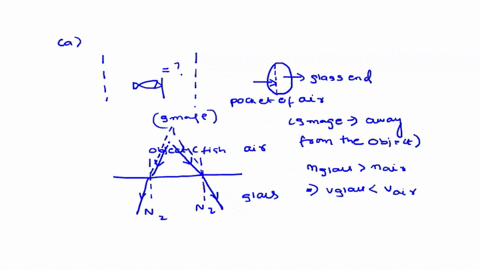

a. If you look at a fish while swimming underwater with a swim mask on, does the fish appear closer or farther than it really is? Draw a ray diagram to explain.
b. Does the fish see your face closer or farther than it really is? Draw a ray diagram to explain.

Key Concepts

Refraction

Refraction is the change in direction of light as it passes from one medium to another with a different refractive index. This bending of light is governed by the difference in the optical densities of the media, leading to apparent shifts in the position of objects as viewed from different perspectives.

Snell's Law

Snell's Law quantitatively describes refraction by relating the angles of incidence and refraction to the indices of refraction of the two media. It provides the mathematical framework to understand how light rays bend when passing through interfaces, such as from water to glass or air.

Apparent Depth and Image Formation

Due to refraction, objects viewed through a medium boundary (for example, a fish seen through the flat glass of a swim mask) appear displaced from their true positions. This effect results in a virtual image that is shifted either closer or farther away from the viewer, depending on the direction of observation and the sequence of media traversed by the light.

Ray Diagrams

A ray diagram is a graphical tool used to illustrate the paths taken by light rays as they pass through different media. By drawing incident and refracted rays according to Snell's Law, ray diagrams help visualize how and why the apparent positions of objects are altered when viewed through interfaces like the water-glass-air boundaries of a swim mask.
