A transistor is used in common-emitter mode as an amplifier....

Name: Problem 58, Chapter 27: Objective Physics for NEET
Uploaded: 2021-09-07T16:04:39-08:00
Duration: 1 min 47 s
Channel: Ajay Singhal
Description: A transistor is used in common-emitter mode as an amplifier. Then (a) the base-collector junction is forward biased (b) the base-emitter junction is reverse biased (c) the input signal is connected in series with the voltage applied to the base-emitter junction (d) the input signal is connected in series with the voltage applied to the base-collector junction

A transistor is used in common-emitter mode as an amplifier. Then (a) the base-collector junction is forward biased (b) the base-emitter junction is reverse biased (c) the input signal is connected in series with the voltage applied to the base-emitter junction (d) the input signal is connected in series with the voltage applied to the base-collector junction

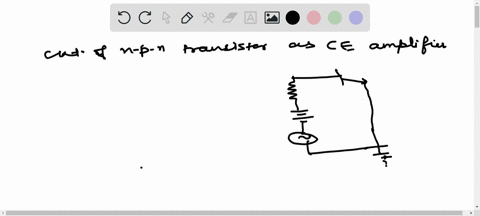

A transistor is used in common-emitter mode as an amplifier. Then
(a) the base-collector junction is forward biased
(b) the base-emitter junction is reverse biased
(c) the input signal is connected in series with the voltage applied to the base-emitter junction
(d) the input signal is connected in series with the voltage applied to the base-collector junction

Key Concepts

Signal Coupling in Amplifiers

Signal coupling involves the method by which an input AC signal is introduced to the bias network of the amplifier without disturbing the DC operating point. Typically, a capacitor is used to couple the external signal to the base of the transistor in common-emitter amplifiers, allowing the AC variations to superimpose on the DC bias voltage across the base-emitter junction.

Bipolar Junction Transistor (BJT)

A bipolar junction transistor is a semiconductor device that controls the flow of current between two terminals (emitter and collector) via a third terminal (base). It operates based on charge carrier injection and is key for amplification and switching in electronic circuits.

Common-Emitter Amplifier

The common-emitter amplifier is one of the most widely used configurations in transistor amplification applications. In this setup, the emitter serves as a common reference point for both the input and output circuits, providing significant voltage gain while maintaining moderate input impedance. Its design leverages the inherent characteristics of the transistor for effective signal amplification.

Biasing in BJT Amplifiers

Proper biasing of a BJT is crucial for establishing its operating point in the active region, where amplification occurs. In a common-emitter configuration, the base-emitter junction is forward biased to allow current flow and facilitate transistor action, while the base-collector junction is reverse biased to ensure controlled collector current. This biasing scheme ensures stable operation and linear performance of the amplifier.
