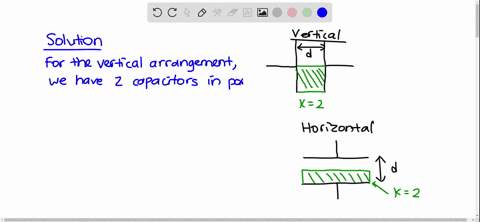

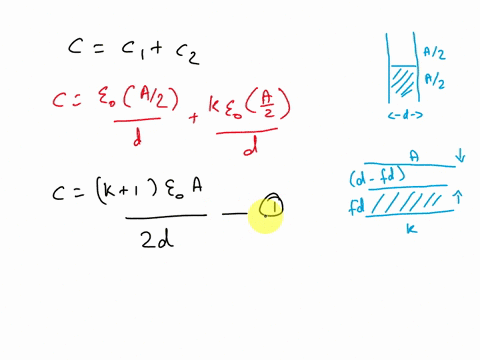

A vertical parallel-plate capacitor is half filled with a dielectric for which the dielectric constant is 2.00 (Fig. $\mathrm{P} 26.70 \mathrm{a}$ ). When this capacitor is positioned horizontally, what fraction of it should be filled with the same dielectric (Fig. P26.70b) in order for the two capacitors to have equal capacitance? CAN'T COPY THE FIGURE

Key Concepts

Parallel Plate Capacitor

A parallel plate capacitor consists of two conducting plates separated by a small distance. Its capacitance is determined by the area of the plates, the separation distance, and the permittivity of the material between them. This simple configuration serves as a foundational model for understanding how capacitors store charge and energy.

Dielectric Materials

Dielectric materials are insulating substances placed between the plates of a capacitor to increase its capacitance. They work by reducing the effective electric field within the capacitor through the process of polarization, which allows the capacitor to store more charge for a given voltage.

Dielectric Constant

The dielectric constant (or relative permittivity) is a dimensionless factor that quantifies how much a dielectric material increases a capacitor’s capacitance compared to a vacuum. A higher dielectric constant indicates a greater ability of the material to concentrate electric flux, thereby enhancing the overall capacitance.

Partially-Filled Dielectric Capacitor

A partially-filled dielectric capacitor is one in which only a portion of the space between its plates is occupied by a dielectric material while the remaining space is typically air or vacuum. This configuration requires careful analysis because the regions with and without the dielectric behave differently, often necessitating the calculation of an equivalent capacitance using series and parallel combinations depending on the setup.

Equivalent Capacitance in Composite Systems

When a capacitor contains different materials (for example, a dielectric in part of the volume), its overall capacitance can be determined by dividing the capacitor into sections that each have a distinct capacitance. By using series or parallel combinations based on the geometry and arrangement of these sections, one can derive an equivalent capacitance for the entire system.
