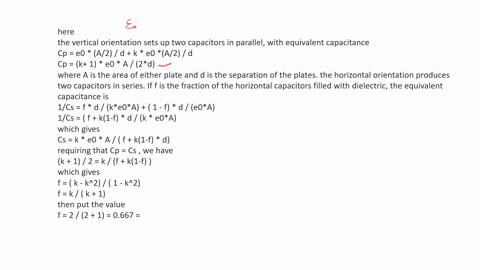

A vertical parallel-plate capacitor is half filled with a dielectric for which the dielectric constant is 2.00 (Fig. P26.70a). When this capacitor is positioned horizontally, what fraction of it should be filled with the same dielectric (Fig. $\mathrm{P} 26.70 \mathrm{b}$ ) in order for the two capacitors to have equal capacitance?

Key Concepts

Parallel-Plate Capacitor

A parallel-plate capacitor consists of two conductive plates separated by an insulating medium (or vacuum), and its capacitance is determined by the area of the plates, the separation between them, and the permittivity of the medium. The basic formula is C = ?A/d, where ? is the permittivity (?0 multiplied by the dielectric constant, if a dielectric is present), A is the plate area, and d is the separation between the plates.

Dielectric Material and Dielectric Constant

A dielectric is an insulating material inserted between the plates of a capacitor, which increases the capacitance by reducing the effective electric field. The dielectric constant (?) quantifies this effect; it is the factor by which the permittivity of the material increases relative to vacuum. When a dielectric is introduced, the capacitance becomes C = ??0A/d.

Effect of Partial Dielectric Filling

When only part of the space between the capacitor plates is filled with a dielectric, the capacitor becomes inhomogeneous, meaning that different regions have different dielectric properties. The overall capacitance must then be determined by considering each region separately and combining them appropriately, often using series or parallel configurations depending on the geometry of the dielectric placement relative to the electric field lines.

Series and Parallel Capacitor Combinations

In cases where the capacitor is partially filled with a dielectric, the overall system can often be modeled as a combination of capacitors connected either in series or in parallel. For instance, when a capacitor is divided into regions with different dielectric constants along the direction of the electric field, the effective capacitance can be computed by treating each region as a capacitor in series. The rules for combining capacitors in series (1/C_total = 1/C1 + 1/C2 + ...) or in parallel (C_total = C1 + C2 + ...) allow for the calculation of the overall capacitance of the composite system.
