A wire carrying a 28.0 A current bends through a right...

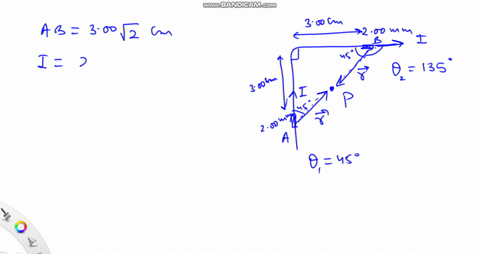

A wire carrying a 28.0 A current bends through a right angle. Consider two $2.00 \mathrm{~mm}$ segments of wire, each $3.00 \mathrm{~cm}$ from the bend (Fig. E28.13). Find the magnitude and direction of the magnetic field these two segments produce at point $P$, which is midway between them.

Key Concepts

Biot-Savart Law

The Biot-Savart Law is a fundamental principle that describes how moving charges or current elements produce a magnetic field at a given point in space. It establishes that the magnetic field contribution from a small element of current is proportional to the current magnitude, the length of the element, and the sine of the angle between the element and the line connecting the element to the observation point, while being inversely proportional to the square of the distance from the element to that point. This law is essential for calculating the magnetic field generated by currents flowing through wires or loops, especially when the geometry of the conductor is not simple.

Right-Hand Rule

The right-hand rule is a mnemonic used to determine the direction of the magnetic field created by a current-carrying conductor. By pointing the thumb in the direction of the conventional current, the curled fingers indicate the direction of the magnetic field lines encircling the conductor. This concept is crucial when predicting the orientation of the magnetic field in various sections of a current-carrying wire, particularly when the wire bends or has a non-linear configuration.

Superposition Principle

The superposition principle states that the total magnetic field at a given point due to multiple sources is the vector sum of the individual magnetic fields produced by each source independently. This principle allows for the analysis of complex systems, such as wires with bends or multiple segments, by calculating the magnetic field generated by each segment and then combining these vectorially to obtain the overall magnetic field.

Magnetic Field from Current Carrying Wires

Calculating the magnetic field from current-carrying wires involves applying specific formulations derived from the Biot-Savart Law for different geometries, such as infinitely long wires, finite segments, or arcs. For finite segments, integrating the Biot-Savart expression along the length of the wire takes into account the contributions at each element, while the symmetry of the configuration simplifies the computation. Understanding these formulations is crucial when evaluating the contributions of distinct segments in scenarios where wires bend or change direction.
