A wire with current i=3.00 A is shown in Fig. 29-53 . Two semi-infinite straight sections, both

step 1 We can write the total magnetic field b is equal to two times of the magnetic field produced by

A wire with current i=3.00 A is shown in Fig. 29-53 . Two...

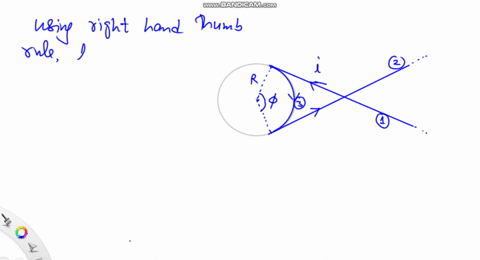

A wire with current $i=3.00 \mathrm{~A}$ is shown in Fig. $29-53 .$ Two semi-infinite straight sections, both tangent to the same circle, are connected by a circular arc that has a central angle $\theta$ and runs along the circumference of the circle. The arc and the two straight sections all lie in the same plane. If $B=0$ at the circle's center, what is $\theta ?$

Key Concepts

Superposition Principle in Magnetostatics

The superposition principle allows us to determine the total magnetic field at a point by vectorially adding the magnetic fields due to each individual segment of a current-carrying conductor. This principle is crucial in analyzing complex configurations, where contributions from different parts, such as arcs and straight segments, may cancel or reinforce each other.

Magnetic Field of Straight Current-Carrying Wires

Straight wires carrying current generate magnetic fields that can be calculated using specific formulas derived from the Biot-Savart law. In cases such as semi-infinite wires, where the wire is not infinite, the magnetic field produced is different than that from an infinitely long wire, typically a fraction of it, which must be correctly accounted for.

Magnetic Field of a Current-Carrying Arc

A current-carrying circular arc produces a magnetic field at the center of the circle that is proportional to its central angle. This concept is essential in scenarios where parts of a circuit are curved, as the angular extent of the arc directly determines the magnitude of the contribution at the center.

Biot-Savart Law

The Biot-Savart law is a fundamental principle used to compute the magnetic field produced by a small segment of current. By integrating over the entire path of the current-carrying conductors, it allows us to determine the contributions from different shapes and configurations, such as straight segments and curved arcs.
