Fundamentals of Physics

David Halliday, Robert Resnick

Chapter 29

Magnetic Fields Due to Currents - all with Video Answers

Educators

Chapter Questions

Problem 1

A surveyor is using a magnetic compass $6.1 \mathrm{~m}$ below a power line in which there is a steady current of 100 A. (a) What is the magnetic field at the site of the compass due to the power line? (b) Will this field interfere seriously with the compass reading? The horizontal component of Earth's magnetic field at the site is $20 \mu \mathrm{T}$.

AJ

Ahmed Jendeya

Numerade Educator

Problem 2

Figure $29-35 a$ shows an element of length $d s=1.00 \mu \mathrm{m}$ in a very long straight wire carrying current. The current in that element sets up_a differential magnetic field $d \vec{B}$ at points in the surrounding space. Figure $29-35 b$ gives the magnitude $d B$ of the field for points $2.5 \mathrm{~cm}$ from the element, as a function of angle $\theta$ between the wire and a straight line to the point. The vertical scale is set by $d B_{s}=60.0 \mathrm{pT}$. What is the magnitude of the magnetic field set up by the entire wire at perpendicular distance $2.5 \mathrm{~cm}$ from the wire?

Vishal Gupta

Numerade Educator

Problem 3

At a certain location in the Philippines, Earth's magnetic field of $39 \mu \mathrm{T}$ is horizontal and directed due north. Suppose the net field is zero exactly $8.0 \mathrm{~cm}$ above a long, straight, horizontal wire that carries a constant current. What are the (a) magnitude and (b) direction of the current?

Salamat Ali

Numerade Educator

Problem 4

A straight conductor carrying current $i=5.0$ A splits into identical semicircular arcs as shown in Fig. 29-36. What is the magnetic field at the center $C$ of the resulting circular loop?

Vishal Gupta

Numerade Educator

Problem 5

In Fig. $29-37,$ a current $i=10 \mathrm{~A}$ is set up in a long hairpin conductor formed by bending a wire into a semicircle of radius $R=5.0 \mathrm{~mm}$. Point $b$ is midway between the straight sections and so distant from the semicircle that each straight section can be approximated as being an infinite wire. What are the (a) magnitude and (b) direction (into or out of the page) of $\vec{B}$ at $a$ and the (c) magnitude and (d) direction of $\vec{B}$ at $b ?$

Salamat Ali

Numerade Educator

Problem 6

In Fig. $29-38,$ point $P$ is at perpendicular distance $R=2.00 \mathrm{~cm}$ from a very long straight wire carrying a current. The magnetic field $\vec{B}$ set up at point $P$ is due to contributions from all the identical current-length elements $i d \vec{s}$ along the wire. What is the distance $s$ to the element making (a) the greatest contribution to field $\vec{B}$ and (b) $10.0 \%$ of the greatest contribution?

Rahul Nikhar

Numerade Educator

Problem 7

In Fig. 29-39, two circular arcs have radii $a=13.5 \mathrm{~cm}$ and $b=10.7 \mathrm{~cm},$ subtend angle $\theta=74.0^{\circ}$ carry current $i=0.411 \mathrm{~A},$ and share the same center of curvature $P$. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at $P ?$

Salamat Ali

Numerade Educator

Problem 8

In Fig. $29-40,$ two semicircular arcs have radii $R_{2}=7.80 \mathrm{~cm}$ and $\underline{R}_{1}=$ $3.15 \mathrm{~cm},$ carry current $i=0.281 \mathrm{~A}$ and have the same center of curvature C. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at $C ?$

Rahul Nikhar

Numerade Educator

Problem 9

Two long straight wires are parallel and $8.0 \mathrm{~cm}$ apart. They are to carry equal currents such that the magnetic field at a point halfway between them has magnitude $300 \mu \mathrm{T}$. (a) Should the currents be in the same or opposite directions? (b) How much current is needed?

Vishal Gupta

Numerade Educator

Problem 10

In Fig. 29-41, a wire forms a semicircle of radius $R=9.26 \mathrm{~cm}$ and two (radial) straight segments each of length $L=13.1 \mathrm{~cm}$. The wire carries current $i=34.8 \mathrm{~mA}$. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at the semicircle's center of curvature $C ?$

Rahul Nikhar

Numerade Educator

Problem 11

In Fig. $29-42,$ two long straight wires are perpendicular to the page and separated by distance $d_{1}=0.75 \mathrm{~cm} .$ Wire 1 carries $6.5 \mathrm{~A}$ into the page. What are the (a) magnitude and (b) direction (into or out of the page) of the current in wire 2 if the net magnetic field due to the two currents is zero at point $P$ located at distance $d_{2}=1.50 \mathrm{~cm}$ from wire $2 ?$

Salamat Ali

Numerade Educator

Problem 12

In Fig. 29-43, two long straight wires at separation $d=16.0 \mathrm{~cm}$ carry currents $i_{1}=3.61 \mathrm{~mA}$ and $i_{2}=3.00 i_{1}$ out of the page. (a) Where on the $x$ axis is the net magnetic field equal to zero? (b) If the two currents are doubled, is the zero-field point shifted toward wire $1,$ shifted toward wire 2 , or unchanged?

Rahul Nikhar

Numerade Educator

Problem 13

In Fig. $29-44,$ point $P_{1}$ is at distance $R=13.1 \mathrm{~cm}$ on the perpendicular bisector of a straight wire of length $L=18.0 \mathrm{~cm}$ carrying current $i=58.2 \mathrm{~mA}$. (Note that the wire is not long.) What is the magnitude of the magnetic field at $P_{1}$ due to $i ?$

Salamat Ali

Numerade Educator

Problem 14

Equation $29-4$ gives the magnitude $B$ of the magnetic field set up by a current in an infinitely long straight wire, at a point $P$ at perpendicular distance $R$ from the wire. Suppose that point $P$ is actually at perpendicular distance $R$ from the midpoint of a wire with a finite length $L$. Using Eq. $29-4$ to calculate $B$ then results in a certain percentage error. What value must the ratio $L / R$ exceed if the percentage error is to be less than $1.00 \% ?$ That is, what $L / R$ gives
$$
\frac{(B \text { from Eq. } 29-4)-(B \text { actual })}{(B \text { actual })}(100 \%)=1.00 \% ?
$$

Salamat Ali

Numerade Educator

Problem 15

Figure $29-45$ shows two current segments. The lower segment carries a current of $i_{1}=0.40 \mathrm{~A}$ and includes a semicircular arc with radius $5.0 \mathrm{~cm},$ angle $180^{\circ},$ and center point $P .$ The upper segment carries current $i_{2}=2 i_{1}$ and includes a circular arc with radius $4.0 \mathrm{~cm},$ angle $120^{\circ},$ and the same center point $P$ What are the (a) magnitude and (b) direction of the net magnetic field $\vec{B}$ at $P$ for the indicated current directions? What are the
(c) magnitude and (d) direction of $\vec{B}$ if $i_{1}$ is reversed?

Vishal Gupta

Numerade Educator

Problem 16

In Fig. $29-46,$ two concentric circular loops of wire carrying current in the same direction lie in the same plane. Loop 1 has radius $1.50 \mathrm{~cm}$ and carries $4.00 \mathrm{~mA}$. Loop 2 has radius $2.50 \mathrm{~cm}$ and carries $6.00 \mathrm{~mA}$. Loop 2 is to be rotated about a diameter while the net magnetic field $\vec{B}$ set up by the two loops at their common center is measured. Through what angle must loop 2 be rotated so that the magnitude of that net field is $100 \mathrm{nT} ?$

Salamat Ali

Numerade Educator

Problem 17

In Fig. $29-44,$ point $P_{2}$ is at perpendicular distance $R=25.1 \mathrm{~cm}$ from one end of a straight wire of length $L=13.6 \mathrm{~cm}$ carrying current $i=0.693$ A. (Note that the wire is not long.) What is the magnitude of the magnetic field at $\bar{P}_{2} ?$

Salamat Ali

Numerade Educator

Problem 18

A current is set up in a wire loop consisting of a semicircle of radius $4.00 \mathrm{~cm},$ a smaller concentric semicircle, and two radial straight lengths, all in the same plane. Figure $29-47 a$ shows the arrangement but is not drawn to scale. The magnitude of the magnetic field produced at the center of curvature is $47.25 \mu \mathrm{T}$. The smaller semicircle is then flipped over (rotated) until the loop is again entirely in the same plane (Fig. $29-47 b$ ). The magnetic field produced at the (same) center of curvature now has magnitude $15.75 \mu \mathrm{T},$ and its direction is reversed from the initial magnetic field. What is the radius of the smaller semicircle?

Vishal Gupta

Numerade Educator

Problem 19

One long wire lies along an $x$ axis and carries a current of $30 \mathrm{~A}$ in the positive $x$ direction. A second long wire is perpendicular to the $x y$ plane, passes through the point $(0,4.0 \mathrm{~m}, 0),$ and carries a current of $40 \mathrm{~A}$ in the positive $z$ direction. What is the magnitude of the resulting magnetic field at the point $(0,2.0 \mathrm{~m}, 0) ?$

Salamat Ali

Numerade Educator

Problem 20

In Fig. $29-48,$ part of a long insulated wire carrying current $i=5.78 \mathrm{~mA}$ is bent into a circular section of radius $R=1.89 \mathrm{~cm} .$ In unit-vector notation, what is the magnetic field at the center of curvature $C$ if the circular section (a) lies in the plane of the page as shown and (b) is perpendicular to the plane of the page after being rotated $90^{\circ}$ counterclockwise as indicated?

Vishal Gupta

Numerade Educator

Problem 21

Figure $29-49$ shows two very long straight wires (in cross section) that each carry a current of 4.00 A directly out of the page. Distance $d_{1}=6.00 \mathrm{~m}$ and distance $d_{2}=4.00 \mathrm{~m} .$ What is the magnitude of the net magnetic field at point $P$. which lies on a perpendicular bisector to the wires?

Salamat Ali

Numerade Educator

Problem 22

Figure $29-50 a$ shows, in cross section, two long, parallel wires carrying current and separated by distance $L$. The ratio $i_{1} / i_{2}$ of their currents is $4.00 ;$ the directions of the currents are not indicated. Figure $29-50 b$ shows the $y$ component $B_{y}$ of their net magnetic field along the $x$ axis to the right of wire $2 .$ The vertical scale is set by $B_{y s}=4.0 \mathrm{nT},$ and the horizontal scale is set by $x_{s}=20.0 \mathrm{~cm}$
(a) At what value of $x>0$ is $B_{y}$ maximum? (b) If $i_{2}=3 \mathrm{~mA},$ what is the value of that maximum? What is the direction (into or out of the page) of (c) $i_{1}$ and (d) $i_{2}$ ?

Eduard Sanchez

Numerade Educator

Problem 23

Figure $29-51$ shows a snapshot of a proton moving at velocity $\vec{v}=(-200 \mathrm{~m} / \mathrm{s}) \hat{\mathrm{j}}$ toward a long straight wire with current $i=350 \mathrm{~mA}$ At the instant shown, the proton's distance from the wire is $d=2.89 \mathrm{~cm}$. In unit-vector notation, what is the magnetic force on the proton due to the current?

Salamat Ali

Numerade Educator

Problem 24

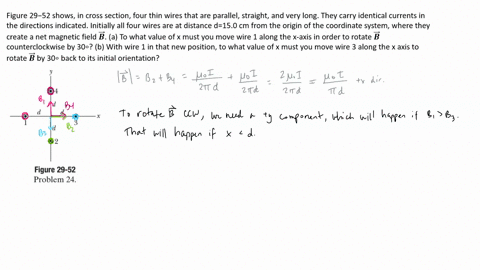

Figure $29-52$ shows, in cross section, four thin wires that are parallel, straight, and very long. They carry identical currents in the directions indicated. Initially all four wires are at distance $d=15.0 \mathrm{~cm}$ from the origin of the coordinate system, where they create a net magnetic field $\vec{B}$. (a) To what value of $x$ must you move wire 1 along the $x$ axis in order to rotate $\vec{B}$ counterclockwise by $30^{\circ} ?$ (b) With wire 1 in that new position, to what value of $x$ must you move wire 3 along the $x$ axis to rotate $\vec{B}$ by $30^{\circ}$ back to its initial orientation?

Brandy Heflin

Numerade Educator

Problem 25

A wire with current $i=3.00 \mathrm{~A}$ is shown in Fig. $29-53 .$ Two semi-infinite straight sections, both tangent to the same circle, are connected by a circular arc that has a central angle $\theta$ and runs along the circumference of the circle. The arc and the two straight sections all lie in the same plane. If $B=0$ at the circle's center, what is $\theta ?$

Salamat Ali

Numerade Educator

Problem 26

In Fig. $29-54 a$, wire 1 consists of a circular arc and two radial lengths; it carries current $i_{1}=0.50 \mathrm{~A}$ in the direction indicated. Wire $2,$ shown in cross section, is long, straight, and perpendicular to the plane of the figure. Its distance from the center of the arc is equal to the radius $R$ of the arc, and it carries a current $i_{2}$ that can be varied. The two currents set up a net magnetic field $\vec{B}$ at the center of the arc. Figure $29-54 b$ gives the square of the field's magnitude $B^{2}$ plotted versus the square of the current $i_{2}^{2}$. The vertical scale is set by $B_{s}^{2}=10.0 \times 10^{-10} \mathrm{~T}^{2} .$ What angle is subtended by the arc?

Salamat Ali

Numerade Educator

Problem 27

In Fig. $29-55,$ two long straight wires (shown in cross section) carry the currents $i_{1}=30.0 \mathrm{~mA}$ and $i_{2}=$ $40.0 \mathrm{~mA}$ directly out of the page. They are equal distances from the origin, where they set up a magnetic field $\vec{B}$. To what value must current $i_{1}$ be changed in order to rotate $\vec{B} 20.0^{\circ}$ clockwise?

Salamat Ali

Numerade Educator

Problem 28

Figure $29-56 a$ shows two wires, each carrying a current. Wire 1 consists of a circular arc of radius $R$ and two radial lengths; it carries current $i_{1}=2.0 \mathrm{~A}$ in the direction indicated. Wire 2 is long and straight; it carries a current $i_{2}$ that can be varied; and it is at distance $R / 2$ from the center of the arc. The net magnetic field $\vec{B}$ due to the two currents is measured at the center of curvature of the arc. Figure $29-56 b$ is a plot of the component of $\vec{B}$ in the direction perpendicular to the figure as a function of current $i_{2}$. The horizontal scale is set by $i_{2 s}=1.00$ A. What is the angle subtended by the arc?

Salamat Ali

Numerade Educator

Problem 29

In Fig. 29-57, four long straight wires are perpendicular to the page, and their cross sections form a square of edge length $a=20 \mathrm{~cm} .$ The currents are out of the page in wires 1 and 4 and into the page in wires 2 and $3,$ and each wire carries 20 A. In unitvector notation, what is the net magnetic field at the square's center?

Vishal Gupta

Numerade Educator

Problem 30

Two long straight thin wires with current lie against an equally long plastic cylinder, at radius $R=20.0 \mathrm{~cm}$ from the cylinder's central axis. Figure $29-58 a$ shows, in cross section, the cylinder and wire 1 but not wire 2 . With wire 2 fixed in place, wire 1 is moved around the cylinder, from angle $\theta_{1}=0^{\circ}$ to angle $\theta_{1}=180^{\circ}$, through the first and second quadrants of the $x y$ coordinate system. The net magnetic field $\vec{B}$ at the center of the cylinder is measured as a function of $\theta_{1} .$ Figure $29-58 b$ gives the $x$ component $B_{x}$ of that field as a function of $\theta_{1}$ (the vertical scale is set by $\left.B_{x s}=6.0 \mu \mathrm{T}\right),$ and Fig. $29-58 c$ gives the $y$ component $B_{y}$ (the vertical scale is set by $B_{y s}=$ $4.0 \mu \mathrm{T}) .$ (a) At what angle $\theta_{2}$ is wire 2 located? What are the (b) size and (c) direction (into or out of the page) of the current in wire 1 and the (d) size and (e) direction of the current in wire $2 ?$

Dading Chen

Numerade Educator

Problem 31

In Fig. 29-59, length $a$ is $4.7 \mathrm{~cm}$ (short) and current $i$ is $13 \mathrm{~A}$. What are the (a) magnitude and (b) direction (into or out of the page) of the magnetic field at point $P ?$

Salamat Ali

Numerade Educator

Problem 32

The current-carrying wire loop in Fig. $29-60 a$ lies all in one plane and consists of a semicircle of radius
$10.0 \mathrm{~cm},$ a smaller semicircle with the same center, and two radial lengths. The smaller semicircle is rotated out of that plane by angle $\theta,$ until it is perpendicular to the plane (Fig. $29-60 b$ ). Figure $29-60 c$ gives the magnitude of the net magnetic field at the center of curvature versus angle $\theta$. The vertical scale is set by $B_{a}=10.0 \mu \mathrm{T}$ and $B_{b}=12.0 \mu \mathrm{T}$. What is the radius of the smaller semicircle?

Eduard Sanchez

Numerade Educator

Problem 33

Figure $29-61$ shows a cross section of a long thin ribbon of width $w=4.91 \mathrm{~cm}$ that is carrying a uniformly distributed total current $i=4.61 \mu \mathrm{A}$ into the page. In unit vector notation, what is the magnetic field $\vec{B}$ at a point $P$ in the plane of the ribbon at a distance $d=2.16 \mathrm{~cm}$ from its edge? (Hint: Imagine the ribbon as being constructed from many long, thin, parallel wires.)

Salamat Ali

Numerade Educator

Problem 34

Figure $29-62$ shows, in cross section, two long straight wires held against a plastic cylinder of radius $20.0 \mathrm{~cm} .$ Wire 1 carries current $i_{1}=60.0 \mathrm{~mA}$ out of the page and is fixed in place at the left side of the cylinder. Wire 2 carries current $i_{2}=40.0 \mathrm{~mA}$ out of the page and can be moved around the cylinder. At what (positive) angle $\theta_{2}$ should wire 2 be positioned such that, at the origin, the net magnetic field due to the two currents has magnitude 80.0 nT?

Vishal Gupta

Numerade Educator

Problem 35

Figure $29-63$ shows wire 1 in cross section; the wire is long and straight, carries a current of $4.00 \mathrm{~mA}$ out of the page, and is at distance $d_{1}=2.40 \mathrm{~cm}$ from a surface. Wire $2,$ which is parallel to wire 1 and also long, is at horizontal distance $d_{2}=5.00 \mathrm{~cm}$ from wire 1 and carries a current of $6.80 \mathrm{~mA}$ into the page. What is the $x$ component of the magnetic force per unit length on wire 2 due to wire $1 ?$

Salamat Ali

Numerade Educator

Problem 36

In Fig. $29-64,$ five long parallel wires in an $x y$ plane are separated by distance $d=8.00 \mathrm{~cm},$ have lengths of $10.0 \mathrm{~m},$ and carry identical currents of 3.00 A out of the page. Each wire experiences a magnetic force due to the currents in the other wires. In unit-vector notation, what is the net magnetic force on (a) wire 1 , (b) wire $2,$ (c) wire 3 , (d) wire $4,$ and (e) wire $5 ?$

Salamat Ali

Numerade Educator

Problem 37

In Fig. $29-57,$ four long straight wires are perpendicular to the page, and their cross sections form a square of edge length $a=13.5 \mathrm{~cm} .$ Each wire carries $7.50 \mathrm{~A},$ and the currents are out of the page in wires 1 and 4 and into the page in wires 2 and $3 .$ In unitvector notation, what is the net magnetic force per meter of wire length on wire $4 ?$

Vishal Gupta

Numerade Educator

Problem 38

Figure $29-65 a$ shows, in cross section, three current carrying wires that are long, straight, and parallel to one another. Wires 1 and 2 are fixed in place on an $x$ axis, with separation $d$. Wire 1 has a current of $0.750 \mathrm{~A},$ but the direction of the current is not given. Wire 3 , with a current of 0.250 A out of the page, can be moved along the $x$ axis to the right of wire $2 .$ As wire 3 is moved, the magnitude of the net magnetic force $\vec{F}_{2}$ on wire 2 due to the currents in wires 1 and 3 changes. The $x$ component of that force is $F_{2 x}$ and the value per unit length of wire 2 is $F_{2 x} / L_{2}$. Figure $29-65 b$ gives $F_{2 x} / L_{2}$ versus the position $x$ of wire 3 . The plot has an asymptote $F_{2 x} / L_{2}=-0.627 \mu \mathrm{N} / \mathrm{m}$ as $x \rightarrow \infty .$ The horizontal scale is set by $x_{s}=12.0 \mathrm{~cm} .$ What are the (a) size and (b) direction (into or out of the page) of the current in wire $2 ?$

Eduard Sanchez

Numerade Educator

Problem 39

In Fig. $29-64,$ five long parallel wires in an $x y$ plane are separated by distance $d=50.0 \mathrm{~cm} .$ The currents into the page are $i_{1}=2.00 \mathrm{~A}, i_{3}=0.250 \mathrm{~A}, i_{4}=4.00 \mathrm{~A},$ and $i_{5}=2.00 \mathrm{~A} ;$ the current out of the page is $i_{2}=4.00$ A. What is the magnitude of the net force per unit length acting on wire 3 due to the currents in the other wires?

Salamat Ali

Numerade Educator

Problem 40

In Fig. 29-57, four long straight wires are perpendicular to the page, and their cross sections form a square of edge length $a=8.50 \mathrm{~cm} .$ Each wire carries $15.0 \mathrm{~A},$ and all the currents are out of the page. In unit-vector notation, what is the net magnetic force per meter of wire length on wire $1 ?$

Salamat Ali

Numerade Educator

Problem 41

In Fig. 29-66, a long straight wire carries a current $i_{1}=30.0 \mathrm{~A}$ and a rectangular loop carries current $i_{2}=20.0 \mathrm{~A}$. Take the dimensions to be $a=1.00 \mathrm{~cm}$, $b=8.00 \mathrm{~cm},$ and $L=30.0 \mathrm{~cm} .$ In unit-vector notation, what is the net force on the loop due to $i_{1} ?$

Salamat Ali

Numerade Educator

Problem 42

In a particular region there is a uniform current density of $15 \mathrm{~A} / \mathrm{m}^{2}$ in the positive $z$ direction. What is the value of $\oint \vec{B} \cdot d \vec{s}$ when that line integral is calculated along a closed path consisting of the three straight-line segments from $(x, y, z)$ coordinates $(4 d, 0,0)$ to $(4 d, 3 d, 0)$ to (0,0,0) to $(4 d, 0,0),$ where $d=20 \mathrm{~cm} ?$

Salamat Ali

Numerade Educator

Problem 43

Figure $29-67$ shows a cross section across a diameter of a long cylindrical conductor of radius $a=2.00 \mathrm{~cm}$ carrying uniform current 170 A. What is the magnitude of the current's magnetic field at radial distance (a) $0,(b) 1.00 \mathrm{~cm},$ (c) $2.00 \mathrm{~cm}$ (wire's surface), and (d) $4.00 \mathrm{~cm} ?$

Vishal Gupta

Numerade Educator

Problem 44

Figure $29-68$ shows two closed paths wrapped around two conducting loops carrying currents $i_{1}=5.0 \mathrm{~A}$ and $i_{2}=3.0$ A. What is the value of the integral $\oint \vec{B} \cdot d \vec{s}$ for (a) path 1 and (b) path $2 ?$

Salamat Ali

Numerade Educator

Problem 45

Each of the eight conductors in Fig. $29-69$ carries 2.0 A of current into or out of the page. Two paths are indicated for the line integral $\oint \vec{B} \cdot d \vec{s} .$ What is the value of the integral for (a) path 1 and (b) path $2 ?$

Salamat Ali

Numerade Educator

Problem 46

Eight wires cut the page perpendicularly at the points shown in Fig. $29-70 .$ A wire labeled with the integer $k(k=1,2, \ldots, 8)$ carries the current $k i,$ where $i=4.50 \mathrm{~mA}$. For those wires with odd $k$, the current is out of the page; for those with even $k,$ it is into the page. Evaluate $\oint \vec{B} \cdot d \vec{s}$ along the closed path indicated and in the direction shown.

Salamat Ali

Numerade Educator

Problem 47

The current density $\vec{J}$ inside a long, solid, cylindrical wire of radius $a=3.1 \mathrm{~mm}$ is in the direction of the central axis, and its magnitude varies linearly with radial distance $r$ from the axis according to $J=J_{0} r / a,$ where $J_{0}=310 \mathrm{~A} / \mathrm{m}^{2}$ Find the magnitude of the magnetic field at (a) $r=0,(b) r=a / 2,$ and (c) $r=a$.

Salamat Ali

Numerade Educator

Problem 48

In Fig. $29-71,$ a long circular pipe with outside radius $R=2.6 \mathrm{~cm}$ carries a (uniformly distributed) current $i=8.00 \mathrm{~mA}$ into the page. A wire runs parallel to the pipe at a distance of $3.00 R$ from center to center. Find the (a) magnitude and (b) direction (into or out of the page) of the current in the wire such that the net magnetic field at point $P$ has the same magnitude as the net magnetic field at the center of the pipe but is in the opposite direction.

Salamat Ali

Numerade Educator

Problem 49

A toroid having a square cross section, $5.00 \mathrm{~cm}$ on a side, and an inner radius of $15.0 \mathrm{~cm}$ has 500 turns and carries a current of 0.800 A. (It is made up of a square solenoid - instead of a round one as in Fig. $29-17$ - bent into a doughnut shape. ) What is the magnetic field inside the toroid at (a) the inner radius and (b) the outer radius?

Salamat Ali

Numerade Educator

Problem 50

A solenoid that is $95.0 \mathrm{~cm}$ long has a radius of $2.00 \mathrm{~cm}$ and a winding of 1200 turns; it carries a current of 3.60 A. Calculate the magnitude of the magnetic field inside the solenoid.

Salamat Ali

Numerade Educator

Problem 51

A 200 -turn solenoid having a length of $25 \mathrm{~cm}$ and a diameter of $10 \mathrm{~cm}$ carries a current of 0.29 A. Calculate the magnitude of the magnetic field $\vec{B}$ inside the solenoid.

Salamat Ali

Numerade Educator

Problem 52

A solenoid $1.30 \mathrm{~m}$ long and $2.60 \mathrm{~cm}$ in diameter carries a current of 18.0 A. The magnetic field inside the solenoid is $23.0 \mathrm{mT}$. Find the length of the wire forming the solenoid.

Salamat Ali

Numerade Educator

Problem 53

A long solenoid has 100 turns/cm and carries current $i$. An electron moves within the solenoid in a circle of radius $2.30 \mathrm{~cm}$ perpendicular to the solenoid axis. The speed of the electron is $0.0460 c(c=$ speed of light $) .$ Find the current $i$ in the solenoid.

Salamat Ali

Numerade Educator

Problem 54

An electron is shot into one end of a solenoid. As it enters the uniform magnetic field within the solenoid, its speed is $800 \mathrm{~m} / \mathrm{s}$ and its velocity vector makes an angle of $30^{\circ}$ with the central axis of the solenoid. The solenoid carries $4.0 \mathrm{~A}$ and has 8000 turns along its length. How many revolutions does the electron make along its helical path within the solenoid by the time it emerges from the solenoid's opposite end? (In a real solenoid, where the field is not uniform at the two ends, the number of revolutions would be slightly less than the answer here.)

Salamat Ali

Numerade Educator

Problem 55

A long solenoid with 10.0 turns/cm and a radius of $7.00 \mathrm{~cm}$ carries a current of $20.0 \mathrm{~mA}$. A current of $6.00 \mathrm{~A}$ exists in a straight conductor located along the central axis of the solenoid. (a) At what radial distance from the axis will the direction of the resulting magnetic field be at $45.0^{\circ}$ to the axial direction?
(b) What is the magnitude of the magnetic field there?

Salamat Ali

Numerade Educator

Problem 56

Figure $29-72$ shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 200 turns and radius $R=25.0 \mathrm{~cm},$ separated by a distance $s=R .$ The two coils carry equal currents $i=12.2 \mathrm{~mA}$ in the same direction. Find the magnitude of the net magnetic field at $P$, midway between the coils.

Salamat Ali

Numerade Educator

Problem 57

A student makes a short electromagnet by winding 300 turns of wire around a wooden cylinder of diameter $d=5.0 \mathrm{~cm} .$ The coil is connected to a battery producing a current of $4.0 \mathrm{~A}$ in the wire. (a) What is the magnitude of the magnetic dipole moment of this device? (b) At what axial distance $z>d$ will the magnetic field have the magnitude $5.0 \mu \mathrm{T}$ (approximately one-tenth that of Earth's magnetic field)?

Vishal Gupta

Numerade Educator

Problem 58

Figure $29-73 a$ shows a length of wire carrying a current $i$ and bent into a circular coil of one turn. In Fig. $29-73 b$ the same length of wire has been bent to give a coil of two turns, each of half the original radius. (a) If $B_{a}$ and $B_{b}$ are the magnitudes of the magnetic fields at the centers of the two coils, what is the ratio $B_{b} / B_{a} ?$ (b) What is the ratio $\mu_{b} / \mu_{a}$ of the dipole moment magnitudes of the coils?

Vishal Gupta

Numerade Educator

Problem 59

What is the magnitude of the magnetic dipole moment $\vec{\mu}$ of the solenoid described in Problem $51 ?$

Salamat Ali

Numerade Educator

Problem 60

In Fig. $29-74 a,$ two circular loops, with different currents but the same radius of $4.0 \mathrm{~cm},$ are centered on a $y$ axis. They are initially separated by distance $L=3.0 \mathrm{~cm},$ with loop 2 positioned at the origin of the axis. The currents in the two loops produce a net magnetic field at the origin, with $y$ component $B_{y}$. That component is to be measured as loop 2 is gradually moved in the positive direction of the $y$ axis. Figure $29-74 b$ gives $B_{y}$ as a function of the position $y$ of loop $2 .$ The curve approaches an asymptote of $B_{y}=7.20 \mu \mathrm{T}$ as $y \rightarrow \infty .$ The horizontal scale is set by $y_{s}=10.0 \mathrm{~cm}$
What are (a) current $i_{1}$ in loop 1 and (b) current $i_{2}$ in loop $2 ?$

Salamat Ali

Numerade Educator

Problem 61

A circular loop of radius $12 \mathrm{~cm}$ carries a current of $15 \mathrm{~A} . \mathrm{A}$ flat coil of radius $0.82 \mathrm{~cm}$, having 50 turns and a current of $1.3 \mathrm{~A}$, is concentric with the loop. The plane of the loop is perpendicular to the plane of the coil. Assume the loop's magnetic field is uniform across the coil. What is the magnitude of (a) the magnetic field produced by the loop at its center and (b) the torque on the coil due to the loop?

Salamat Ali

Numerade Educator

Problem 62

In Fig. $29-75,$ current $i=56.2 \mathrm{~mA}$ is set up in a loop having two radial lengths and two semicircles of radii $a=5.72 \mathrm{~cm}$ and $b=9.36 \mathrm{~cm}$ with a common center $P .$ What are the (a) magnitude and (b) direction (into or out of the page) of the magnetic field at $P$ and the (c) magnitude and (d) direction of the loop's magnetic dipole moment?

Salamat Ali

Numerade Educator

Problem 63

In Fig. $29-76,$ a conductor carries $6.0 \mathrm{~A}$ along the closed path abcdefgha running along 8 of the 12 edges of a cube of edge length $10 \mathrm{~cm} .$ (a) Taking the path to be a combination of three square current loops (bcfgb, abgha, and cdefc), find the net magnetic moment of the path in unit-vector notation. (b) What is the magnitude of the net magnetic field at the $x y z$ coordinates of $(0,5.0 \mathrm{~m}, 0) ?$

Eduard Sanchez

Numerade Educator

Problem 64

In Fig. $29-77,$ a closed loop carries current $i=200 \mathrm{~mA}$. The loop consists of two radial straight wires and two concentric circular arcs of radii $2.00 \mathrm{~m}$ and $4.00 \mathrm{~m} .$ The angle $\theta$ is $\pi / 4$ rad. What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at the center of curvature $P ?$

Salamat Ali

Numerade Educator

Problem 65

A cylindrical cable of radius $8.00 \mathrm{~mm}$ carries a current of $25.0 \mathrm{~A},$ uniformly spread over its cross-sectional area. At what distance from the center of the wire is there a point within the wire where the magnetic field magnitude is $0.100 \mathrm{mT} ?$

Salamat Ali

Numerade Educator

Problem 66

Two long wires lie in an $x y$ plane, and each carries a current in the positive direction of the $x$ axis. Wire 1 is at $y=10.0 \mathrm{~cm}$ and carries $6.00 \mathrm{~A} ;$ wire 2 is at $y=5.00 \mathrm{~cm}$ and carries $10.0 \mathrm{~A}$. (a) In unit-vector notation, what is the net magnetic field $\vec{B}$ at the origin?
(b) At what value of $y$ does $\vec{B}=0 ?$ (c) If the current in wire 1 is reversed, at what value of $y$ does $\vec{B}=0 ?$

Vishal Gupta

Numerade Educator

Problem 67

Two wires, both of length $L,$ are formed into a circle and a square, and each carries current $i .$ Show that the square produces a greater magnetic field at its center than the circle produces at its center.

Salamat Ali

Numerade Educator

Problem 68

A long straight wire carries a current of 50 A. An electron, traveling at $1.0 \times 10^{7} \mathrm{~m} / \mathrm{s},$ is $5.0 \mathrm{~cm}$ from the wire. What is the $\mathrm{mag}-$ nitude of the magnetic force on the electron if the electron velocity is directed (a) toward the wire, (b) parallel to the wire in the direction of the current, and (c) perpendicular to the two directions defined by (a) and (b)?

Vishal Gupta

Numerade Educator

Problem 69

Three long wires are parallel to a $z$ axis, and each carries a current of $10 \mathrm{~A}$ in the positive $z$ direction. Their points of intersection with the $x y$ plane form an equilateral triangle with sides of $50 \mathrm{~cm},$ as shown in Fig. $29-78$. A fourth wire (wire $b$ ) passes through the midpoint of the base of the triangle and is parallel to the other three wires. If the net magnetic force on wire $a$ is zero, what are the (a) size and (b) direction $(+z$ or $-z)$ of the current in wire $b ?$

Salamat Ali

Numerade Educator

Problem 70

Figure $29-79$ shows a closed loop with current $i=2.00$ A. The loop consists of a half-circle of radius $4.00 \mathrm{~m}$ two quarter-circles each of radius $2.00 \mathrm{~m},$ and three radial straight wires. What is the magnitude of the net magnetic field at the common center of the circular sections?

Vishal Gupta

Numerade Educator

Problem 71

A 10 -gauge bare copper wire (2.6 $\mathrm{mm}$ in diameter) can carry a current of 50 A without overheating. For this current, what is the magnitude of the magnetic field at the surface of the wire?

Salamat Ali

Numerade Educator

Problem 72

A long vertical wire carries an unknown current. Coaxial with the wire is a long, thin, cylindrical conducting surface that carries a current of 30 mA upward. The cylindrical surface has a radius of $3.0 \mathrm{~mm} .$ If the magnitude of the magnetic field at a point $5.0 \mathrm{~mm}$ from the wire is $1.0 \mu \mathrm{T},$ what are the (a) size and (b) direction of the current in the wire?

Salamat Ali

Numerade Educator

Problem 73

Figure $29-80$ shows a cross section of a long cylindrical conductor of radius $a=4.00 \mathrm{~cm}$ containing a long cylindrical hole of radius $b=1.50 \mathrm{~cm} .$ The central axes of the cylinder and hole are parallel and are distance $d=2.00 \mathrm{~cm}$ apart; current $i=5.25 \mathrm{~A}$ is uniformly distributed over the tinted area.
(a) What is the magnitude of the magnetic field at the center of the hole? (b) Discuss the two special cases $b=0$ and $\bar{d}=0$

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 74

The magnitude of the magnetic field at a point $88.0 \mathrm{~cm}$ from the central axis of a long straight wire is $7.30 \mu \mathrm{T}$. What is the current in the wire?

Salamat Ali

Numerade Educator

Problem 75

Figure $29-81$ shows a wire segment of length $\Delta s=3.0 \mathrm{~cm},$ centered at the origin, carrying current $i=2.0 \mathrm{~A}$ in the positive $y$ direction $(\mathrm{as}$ part of some complete circuit). To calculate the magnitude of the magnetic field $\vec{B}$ produced by the segment at a point several meters from the origin, we can use $B=\left(\mu_{0} / 4 \pi\right) i \Delta s(\sin \theta) / r^{2}$ as the Biot-Savart law. This is because $r$ and $\theta$ are essentially constant over the segment. Calculate $\vec{B}$ (in unit-vector notation) at the $(x, y, z)$ coordinates $(a)(0,0,5,0 m),(b)(0,6.0 m, 0),$ (c) $(7.0 \mathrm{~m}, 7.0 \mathrm{~m}, 0),$ and (d) $(-3.0 \mathrm{~m},-4.0 \mathrm{~m}, 0)$

Linda Winkler

Numerade Educator

Problem 76

Figure $29-82$ shows, in cross section, two long parallel wires spaced by distance $d=10.0 \mathrm{~cm} ;$ each carries $100 \mathrm{~A},$ out of the page in wire $1 .$ Point $P$ is on a perpendicular bisector of the line connecting the wires. In unit-vector notation, what is the net magnetic field at $P$ if the current in wire 2 is (a) out of the page and
(b) into the page?

Salamat Ali

Numerade Educator

Problem 77

In Fig. $29-83,$ two infinitely long wires carry equal currents $i$. Each follows a $90^{\circ}$ arc on the circumference of the same circle of radius $R$. Show that the magnetic field $\vec{B}$ at the center of the circle is the same as the field $\vec{B}$ a distance $R$ below an infinite straight wire carrying a current $i$ to the left.

Vishal Gupta

Numerade Educator

Problem 78

A long wire carrying $100 \mathrm{~A}$ is perpendicular to the magnetic field lines of pendicular to the magnetic field lines of a uniform magnetic field of magnitude $5.0 \mathrm{mT}$. At what distance from the wire is the net magnetic field equal to zero?

Vishal Gupta

Numerade Educator

Problem 79

A long, hollow, cylindrical conductor (with inner radius $2.0 \mathrm{~mm}$ and outer radius $4.0 \mathrm{~mm}$ ) carries a current of 24 A distributed uniformly across its cross section. A long thin wire that is coaxial with the cylinder carries a current of $24 \mathrm{~A}$ in the opposite direction. What is the magnitude of the magnetic field (a) $1.0 \mathrm{~mm}$, (b) $3.0 \mathrm{~mm}$, and (c) $5.0 \mathrm{~mm}$ from the central axis of the wire and cylinder?

Salamat Ali

Numerade Educator

Problem 80

A long wire is known to have a radius greater than $4.0 \mathrm{~mm}$ and to carry a current that is uniformly distributed over its cross section. The magnitude of the magnetic field due to that current is $0.28 \mathrm{mT}$ at a point $4.0 \mathrm{~mm}$ from the axis of the wire, and $0.20 \mathrm{mT}$ at a point $10 \mathrm{~mm}$ from the axis of the wire. What is the radius of the wire?

Salamat Ali

Numerade Educator

Problem 81

Figure $29-84$ shows a cross section of an infinite conducting sheet carrying a current per unit $x$ -length of $\lambda ;$ the current emerges perpendicularly out of the page. (a) Use the Biot-Savart law and symmetry to show that for all points $P$ above the sheet and all points $P^{\prime}$ below it, the magnetic field $\vec{B}$ is parallel to the sheet and directed as shown. (b) Use Ampere's law to prove that $B=\frac{1}{2} \mu_{0} \lambda$ at all points $P$ and $P^{\prime}$

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 82

Figure $29-85$ shows, in cross section, two long parallel wires that are separated by distance $d=18.6 \mathrm{~cm} .$ Each carries $4.23 \mathrm{~A}$ out of the page in wire 1 and into the page in wire $2 .$ In unitvector notation, what is the net magnetic field at point $P$ at distance $R=34.2 \mathrm{~cm},$ due to the two currents?

Vishal Gupta

Numerade Educator

Problem 83

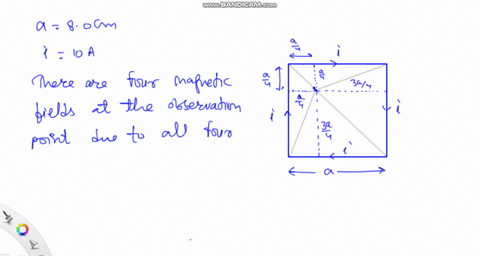

In unit-vector notation, what is the magnetic field at point $P$ in Fig. $29-86$ if $i=10 \mathrm{~A}$ and
$a=8.0 \mathrm{~cm} ?$ (Note that the wires are $n o t$ long. $)$

Vishal Gupta

Numerade Educator

Problem 84

Three long wires all lie in an $x y$ plane parallel to the $x$ axis. They are spaced equally, $10 \mathrm{~cm}$ apart. The two outer wires each carry a current of $5.0 \mathrm{~A}$ in the positive $x$ direction. What is the magnitude of the force on a $3.0 \mathrm{~m}$ section of either of the outer wires if the current in the center wire is $3.2 \mathrm{~A}$ (a) in the positive $x$ direction and (b) in the negative $x$ direction?

Salamat Ali

Numerade Educator

Problem 85

Figure $29-87$ shows a cross section of a hollow cylindrical conductor of radii $a$ and $b$, carrying a uniformly distributed current $i$. (a) Show that the magnetic field magnitude $B(r)$ for the radial distance $r$ in the range $b < r < a$ is given by
$$B=\frac{\mu_{0} i}{2 \pi\left(a^{2}-b^{2}\right)} \frac{r^{2}-b^{2}}{r}$$
(b) Show that when $r=a,$ this equation gives the magnetic field magnitude $B$ at the surface of a long straight wire carrying current $i$ when $r=b,$ it gives zero magnetic field; and when $b=0,$ it gives the magnetic field inside a solid conductor of radius $a$ carrying current $i$. (c) Assume that $a=2.0 \mathrm{~cm}, b=1.8 \mathrm{~cm},$ and $i=100 \mathrm{~A},$ and then plot $B(r)$ for the range $0 < r < 6 \mathrm{~cm}$

Salamat Ali

Numerade Educator

Problem 86

Show that the magnitude of the magnetic field produced at the center of a rectangular loop of wire of length $L$ and width $W$, carrying a current $i$, is
$$B=\frac{2 \mu_{0} i}{\pi} \frac{\left(L^{2}+W^{2}\right)^{1 / 2}}{L W}$$

Khoobchandra Agrawal

Khoobchandra Agrawal

Numerade Educator

Problem 87

Figure $29-88$ shows a cross section of a long conducting coaxial cable and gives its radii $(a, b, c) .$ Equal but opposite currents $i$ are uniformly distributed in the two conductors. Derive expressions for $B(r)$ with radial distance $r$ in the ranges (a) $r < c,$ (b) $c < r < b$, (c) $b < r < a,$ and $(\mathrm{d}) \quad r > a .(\mathrm{e})$ Test these expressions for all the special cases that occur to you. (f) Assume that $a=2.0 \mathrm{~cm}, b=1.8 \mathrm{~cm}$, $c=0.40 \mathrm{~cm},$ and $i=120 \mathrm{~A}$ and plot the function $B(r)$ over the range $0 < r < 3 \mathrm{~cm} .$

Salamat Ali

Numerade Educator

Problem 88

Figure $29-89$ is an idealized schematic drawing of a rail gun. Projectile $P$ sits between two wide rails of circular cross section; a source of current sends current through the rails and through the (conducting) projectile (a fuse is not used). (a) Let $w$ be the distance between the rails, $R$ the radius of each rail, and $i$ the current. Show that the force on the projectile is directed to the right along the rails and is given approximately by
$$F=\frac{i^{2} \mu_{0}}{2 \pi} \ln \frac{w+R}{R}$$
(b) If the projectile starts from the left end of the rails at rest, find the speed $v$ at which it is expelled at the right. Assume that $i=450 \mathrm{kA}, w=12 \mathrm{~mm}, R=6.7 \mathrm{~cm}, L=4.0 \mathrm{~m},$ and the projectile mass is $10 \mathrm{~g}$

Salamat Ali

Numerade Educator
