Question
A zener diode with $V_{2}=6 \mathrm{~V}$, operated at a current of $I_{2}=1 \mathrm{~mA}$, has a dynanic resistance $\mathrm{d} V_{2} / \mathrm{d} I_{x}=3 \Omega .$ If the current varies by $2 \%$, what is the fractional change in the voltage?
Step 1
Step 1: Given that the dynamic resistance $dV_{2}/dI_{x}=3 \Omega$, the current variation $\Delta I_{x}/I_{x}=2\%$, and the operating current $I_{x}=1 mA$, we can write the dynamic resistance as: \[dV_{2}/dI_{x}=3 \Omega\] Show more…
Show all steps
Your feedback will help us improve your experience
Ankur S and 75 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

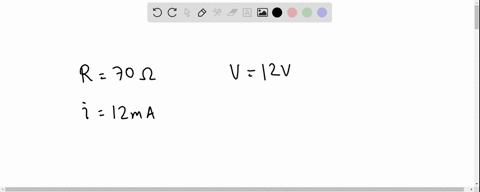

'Zener diode with an incremental resistance 70 ohm has a nominal voltage 12 V at 12 mA current: If the diode current is one-third of the initial value what will be the voltage 0.28 12.28 V 11.72 V 0 V'
Zener diode with an incremental resistance 70 ohm has a nominal voltage 12 V at 12 mA current. If the diode current is one-third of the initial value what will be the voltage. (a) 0.28 V (b) 12.28 V
