An airplane has a mass of 1.60 ×10^4 kg, and each wing has...

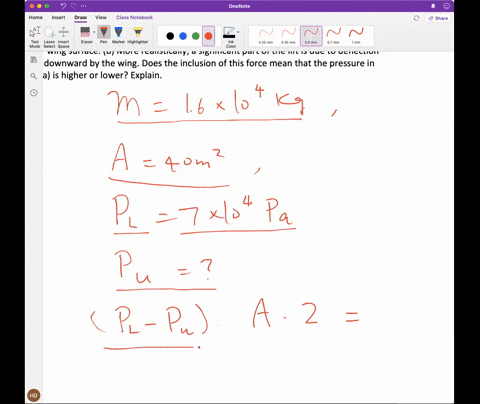

An airplane has a mass of $1.60 \times 10^{4} \mathrm{~kg}$, and each wing has an area of $40.0 \mathrm{~m}^{2}$. During level flight, the pressure on the lower wing surface is $7.00 \times 10^{4} \mathrm{~Pa}$. (a) Suppose the lift on the airplane were due to a pressure difference alone. Determine the pressure on the upper wing surface. (b) More realistically, a significant part of the lift is due to deflection of air downward by the wing. Does the inclusion of this force mean that the pressure in part (a) is higher or lower? Explain.

An airplane has a mass of $1.60 \times 10^{4} \mathrm{~kg}$, and each wing has an area of $40.0 \mathrm{~m}^{2}$. During level flight, the pressure on the lower wing surface is $7.00 \times 10^{4} \mathrm{~Pa}$.

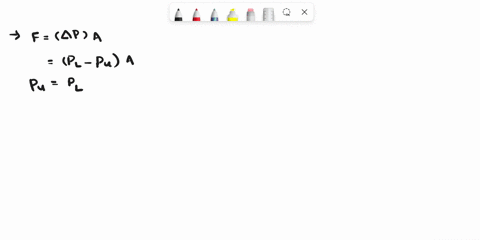

(a) Suppose the lift on the airplane were due to a pressure difference alone. Determine the pressure on the upper wing surface.
(b) More realistically, a significant part of the lift is due to deflection of air downward by the wing. Does the inclusion of this force mean that the pressure in part (a) is higher or lower? Explain.

Key Concepts

Lift Force

Lift is the upward force that counteracts the weight of an airplane, allowing it to remain in level flight. It is generated by differences in pressure across the wing surfaces, ensuring that the net force upward equals the gravitational force pulling the airplane downward.

Pressure Difference

Pressure difference refers to the variation in pressure between the lower and upper surfaces of a wing. This difference creates a net upward force when the higher pressure on the lower surface exceeds the lower pressure on the upper surface, thereby generating lift.

Airfoil Aerodynamics

Airfoil aerodynamics is the study of how a wing’s shape influences air flow and pressure distribution. The curved shape of an airfoil causes air to travel at different speeds over the upper and lower surfaces, contributing to the creation of a pressure difference that results in lift.

Newton's Third Law

Newton's Third Law states that every action has an equal and opposite reaction. In the context of wing lift, when air is deflected downward by the wing, an upward reaction force is produced on the wing, which is a crucial component of the overall lift force.

Aircraft Equilibrium

Aircraft equilibrium in level flight occurs when the total upward lift force equals the airplane’s weight. This balance ensures that the aircraft maintains a constant altitude, and any change in pressure distribution or air deflection must be sufficient to maintain this equilibrium.
