An east-west electric power line carries a 500 -A current toward
the east. The line is 10 $\mathrm{m}$ above Earth's surface. Determine the
magnitude and direction of the magnetic field at Earth's surface
directly under the wire. What assumptions did you make?

Key Concepts

Magnetic Field of a Long Straight Conductor

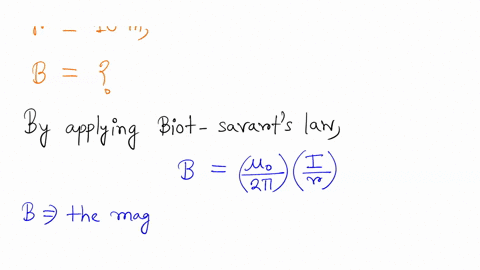

This concept involves understanding that a steady current flowing through an infinitely long, straight conductor produces a magnetic field that forms concentric circles around the wire. The magnitude of this field decreases inversely with distance from the conductor, and it can be determined using the formula B = ??I/(2?r), where I is the current and r is the distance from the wire.

Biot-Savart Law

The Biot-Savart Law provides the fundamental method for calculating the magnetic field produced by a small segment of current. When integrated over an infinite wire, it yields the magnetic field around a long straight conductor. This law is essential for understanding the derivation of the formula for the magnetic field due to a current-carrying wire.

Right-Hand Rule

The right-hand rule is a mnemonic used to determine the direction of the magnetic field created by a current-carrying wire. By pointing the thumb in the direction of conventional current flow, the curl of the fingers indicates the circular direction in which the magnetic field lines are oriented around the wire.

Assumptions in Magnetic Field Calculations

The calculation of the magnetic field from a current-carrying conductor often involves assumptions to simplify the analysis. One common assumption is that the wire is infinitely long and straight, which allows the magnetic field to be considered uniformly circular. Additionally, it is assumed that the medium around the wire is homogeneous and that edge effects or nearby objects do not significantly influence the magnetic field.
