An eccentric force 𝐏 is applied as shown to a steel bar of 25 ×90-mm cross section. The strains

step 1 In this question, we have to find the vertical displacement of point C due to the loading. So we

An eccentric force 𝐏 is applied as shown to a steel bar of...

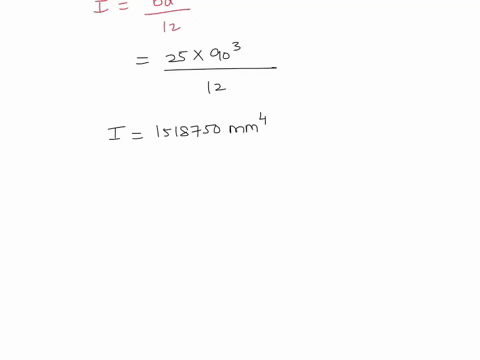

An eccentric force $\mathbf{P}$ is applied as shown to a steel bar of $25 \times 90-\mathrm{mm}$ cross section. The strains at $A$ and $B$ have been measured and found to be \[\varepsilon_{A}=+350 \mu \quad \varepsilon_{B}=-70 \mu\] Knowing that $E=200 \mathrm{GPa}$, determine (a) the distance $d$ $(b)$ the magnitude of the force $\mathbf{P}$.

An eccentric force $\mathbf{P}$ is applied as shown to a steel bar of $25 \times 90-\mathrm{mm}$ cross section. The strains at $A$ and $B$ have been measured and found to be
\[\varepsilon_{A}=+350 \mu \quad \varepsilon_{B}=-70 \mu\]
Knowing that $E=200 \mathrm{GPa}$, determine (a) the distance $d$ $(b)$ the magnitude of the force $\mathbf{P}$.

Key Concepts

Superposition Principle

The superposition principle in structural mechanics states that the total response of a linear system subjected to multiple loads is equal to the sum of the responses caused by each load acting independently. For structural elements experiencing eccentric loading, this principle enables the analysis of the overall strain by separately considering the effects of axial loading and bending, and then combining the results to obtain the complete structural response.

Modulus of Elasticity

The modulus of elasticity, or Young's modulus, is a material property that quantifies the relationship between stress and strain within the elastic limit of a material. It is a measure of the stiffness of the material and plays a crucial role in determining how much a material will deform under a given load. In structural analysis, the modulus of elasticity allows the conversion of stress values into strain values and vice versa.

Moment of Inertia

The moment of inertia, also known as the second moment of area, measures a cross-section's resistance to bending and is a critical parameter in structural analysis. It is calculated based on the geometry of the cross-section and is used in conjunction with the flexure formula to predict how a member will behave under bending loads. A higher moment of inertia indicates greater stiffness and a reduced tendency to bend.

Flexure Formula

The flexure formula is a fundamental relationship in beam theory that relates bending stress to the applied moment, the distance from the neutral axis, and the moment of inertia of the cross-sectional area. It is expressed as sigma = M*y/I, where M is the moment, y is the distance from the neutral axis, and I is the moment of inertia. This formula is essential for determining the stress distribution due to bending in a structural member.

Combined Axial and Bending Effects

When a structural element is subjected to both axial load and bending moment due to eccentric force, the resulting stress at any point in the cross-section is a combination of the uniform axial stress and the linearly varying bending stress. This superimposed stress state requires accounting for both effects when analyzing deformation, ensuring that the total strain reflects contributions from direct compression or tension and bending-induced curvature.

Eccentric Loading

Eccentric loading refers to the application of a force at a point that does not coincide with the centroidal axis of a structural member. This results in both direct axial stress and bending moments within the member. The off-center application of the load creates a non-uniform distribution of stress, thereby inducing bending which significantly affects the overall stress and strain profiles in the structure.
