An ECG monitor must have an RC time constant less than 1.00 ×10^2 us to be able to measure varia

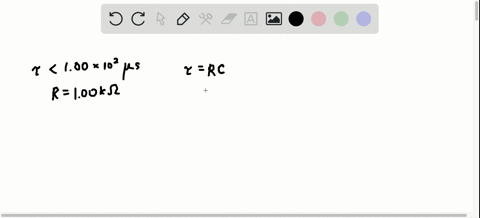

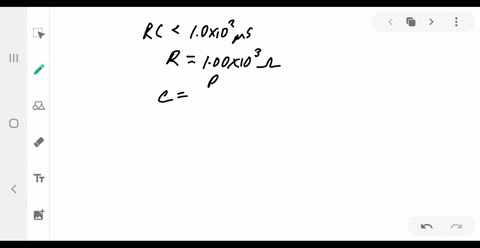

step 1 So in this problem, we already set the maximum value for the time constant equal 100 microsecond

An ECG monitor must have an RC time constant less than 1.00...

An ECG monitor must have an RC time constant less than $1.00 \times 10^{2}$ us to be able to measure variations in voltage over small time intervals. (a) If the resistance of the circuit (due mostly to that of the patient’s chest) is 1.00 $\mathrm{k} \Omega$ what is the maximum capacitance of the circuit? (b) Would it be difficult in practice to limit the capacitance to less than the value found in (a)?

An ECG monitor must have an RC time constant less than $1.00 \times 10^{2}$ us to be able to measure variations in voltage over small time intervals. (a) If the resistance of the
circuit (due mostly to that of the patient’s chest) is 1.00 $\mathrm{k} \Omega$ what is the maximum capacitance of the circuit? (b) Would it be difficult in practice to limit the capacitance to less than the value found in (a)?

Key Concepts

RC Time Constant

The RC time constant (?) is a fundamental concept in circuits combining resistance and capacitance. It is defined as the product of the resistance (R) and the capacitance (C) and represents the time it takes for the voltage across the capacitor to reach about 63% of its final value when charging, or to decay to about 37% when discharging. This parameter is crucial in determining how quickly a circuit can respond to changes in voltage, which is particularly important in time-sensitive applications.

Capacitance

Capacitance is the measure of a component's ability to store electrical energy in an electric field, typically within a capacitor. In an RC circuit, the capacitance value directly influences the charging and discharging rate, and thus the circuit’s overall time constant. Accurate management of capacitance is essential for circuits that require rapid response to voltage changes, ensuring precise timing and signal fidelity.

Resistance

Resistance quantifies how much a material or component opposes the flow of electric current, measured in ohms (?). In an RC circuit, resistance works together with capacitance to establish the time constant. The magnitude of resistance affects the rate at which the capacitor charges or discharges, making it a key parameter in designing circuits that need to operate within specific time scales.

Practical Circuit Considerations

In practical circuit design, especially in sensitive applications, there are challenges related to achieving very low capacitance values. Unintended or stray capacitances can emerge from various parts of a circuit due to component leads, wiring, and physical layout. These parasitic effects may limit the ability to keep the overall capacitance below a desired threshold, impacting the performance in high-speed or precision applications like ECG monitoring.
