An npn silicon bipolar transistor at T=300 K has uniform dopings of NE= 10^19 cm^-3, NB=10^17

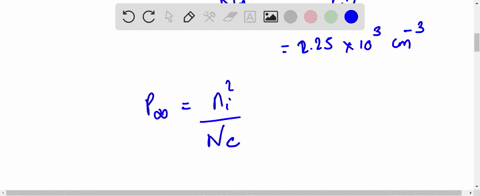

step 1 In this question we have to find these three parameters for the given BJT. So first, nb0 is equa

An npn silicon bipolar transistor at T=300 K has uniform...

An npn silicon bipolar transistor at $T=300 \mathrm{~K}$ has uniform dopings of $N_{E}=$ $10^{19} \mathrm{~cm}^{-3}, N_{B}=10^{17} \mathrm{~cm}^{-3}$, and $N_{C}=7 \times 10^{15} \mathrm{~cm}^{-3}$. The transistor is operating in the inverse-active mode with $V_{B E}=-2 \mathrm{~V}$ and $V_{\mathrm{AC}}=0.565 \mathrm{~V} .(a)$ Sketch the minority carrier distribution through the device. (b) Determine the minority carrier concentrations at $x=x_{\bar{B}}$ and $x^{\prime \prime}=0 .(c)$ If the metallurgical base width is $1.2 \mu \mathrm{m}$, determine the neutral base width.

An npn silicon bipolar transistor at $T=300 \mathrm{~K}$ has uniform dopings of $N_{E}=$ $10^{19} \mathrm{~cm}^{-3}, N_{B}=10^{17} \mathrm{~cm}^{-3}$, and $N_{C}=7 \times 10^{15} \mathrm{~cm}^{-3}$. The transistor is operating
in the inverse-active mode with $V_{B E}=-2 \mathrm{~V}$ and $V_{\mathrm{AC}}=0.565 \mathrm{~V} .(a)$ Sketch the minority carrier distribution through the device. (b) Determine the minority carrier concentrations at $x=x_{\bar{B}}$ and $x^{\prime \prime}=0 .(c)$ If the metallurgical base width is $1.2 \mu \mathrm{m}$, determine the neutral base width.

Key Concepts

Bipolar Junction Transistor (BJT) Operation Modes

BJTs can operate in several modes depending on how the junctions are biased. In the forward active mode, the emitter-base junction is forward biased and the base-collector junction is reverse biased, promoting carrier injection from the emitter to the collector. Conversely, in inverse active mode these biases are swapped, effectively reversing the roles of the emitter and collector which changes the injection and collection processes, impacting device performance and gain.

Minority Carrier Distribution

In semiconductor devices, minority carriers are the charge carriers present in a region where they are outnumbered by majority carriers. Their spatial distribution in a device such as a transistor is determined by injection, diffusion, and recombination processes. This distribution often follows an exponential decay governed by the diffusion equation and influenced by the boundary conditions imposed by the device biasing.

Doping Profiles and Regions in Semiconductor Devices

The doping concentration in different regions of a semiconductor device determines the majority and minority carrier populations. High doping levels create regions with an abundance of majority carriers, while the minority carrier concentration is affected by both doping levels and external biases. Understanding these profiles is crucial for predicting how charge carriers behave across junctions and within the neutral/active regions of the device.

Neutral Base Width

The neutral base width in a transistor is the effective width of the base region where mobile carriers are present, excluding the depletion region. While the metallurgical base width is the physical dimension of the base, the neutral base width is reduced by the portions of the base consumed by the space-charge (depletion) regions at the junctions. This parameter is important for determining the recombination and diffusion characteristics of minority carriers.

Diffusion and Recombination in Semiconductors

Minority carrier transport in semiconductors is largely governed by diffusion and recombination processes. Diffusion arises from carrier concentration gradients, while recombination represents the process by which electrons and holes annihilate each other. The interplay between these processes sets the spatial profile of minority carriers and is critical for accurately modeling the device behavior under various bias conditions.
