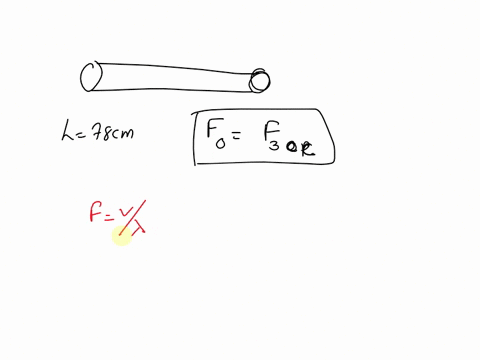

An open-open organ pipe is 78.0 cm long. An open-closed pipe...

Key Concepts

Relationship Between Frequency and Pipe Length

The frequency of a pipe is related to the speed of sound and the effective length of the pipe. For an open-open pipe, the wavelengths are determined by the formula ? = 2L/n, where L is the pipe length and n is the harmonic number. For an open-closed pipe, the fundamental wavelength is four times the length of the pipe (? = 4L). This relationship is essential for comparing and relating frequencies between different types of pipes.

Harmonics

Harmonics refer to the multiples of the fundamental frequency at which a system vibrates naturally. In an open-open pipe, all harmonic frequencies (integer multiples of the fundamental) are present because both ends are open. In contrast, an open-closed pipe only supports odd-numbered harmonics (1st, 3rd, 5th, etc.) due to its asymmetric boundary conditions.

Boundary Conditions in Organ Pipes

The boundary conditions of an organ pipe determine where nodes (points of no displacement) and antinodes (points of maximum displacement) exist. In an open-open pipe, both ends support antinodes, while in an open-closed pipe, the closed end supports a node and the open end supports an antinode. These conditions are crucial as they dictate the possible wavelengths and, hence, the harmonic frequencies that can be produced.

Standing Waves

Standing waves are patterns of vibration that remain fixed in space, occurring when two waves of the same frequency and amplitude travel in opposite directions and interfere. In wind instruments like organ pipes, standing waves are set up in the air column, and the nodes and antinodes formed depend on the pipe's boundary conditions.
