An optical fiber has an index of refraction n and diameter d...

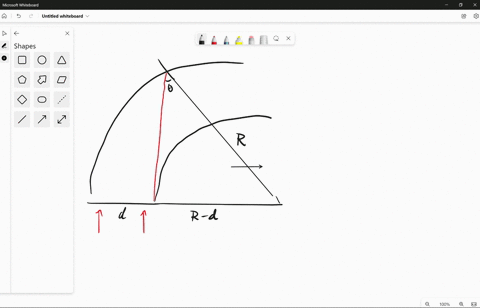

An optical fiber has an index of refraction $n$ and diameter $d .$ It is surrounded by vacuum. Light is sent into the fiber along its axis as shown in Figure $\mathrm{P} 35.43$ on page 1036 . (a) Find the smallest outside radius $R_{\min }$ permitted for a bend in the fiber if no light is to escape. (b) What If? What result does part (a) predict as $d$ approaches zero? Is this behavior reasonable? Explain. (c) As $n$ increases? (d) As $n$ approaches 1 (e) Evaluate $R_{\text { min }}$ assuming the fiber diameter is 100$\mu \mathrm{m}$ and its index of refraction is 1.40 .

Key Concepts

Total Internal Reflection

Total internal reflection is the optical phenomenon whereby light rays incident at an interface between a medium of higher refractive index and one of lower refractive index are completely reflected back into the higher-index medium, provided that the angle of incidence exceeds a specific value known as the critical angle. This principle is fundamental to the operation of optical fibers as it confines light within the core, enabling low-loss transmission over long distances.

Critical Angle

The critical angle is the minimum angle of incidence, relative to the normal at the interface, for which total internal reflection occurs. It is determined by the indices of refraction of the media on either side of the interface and is calculated using Snell’s Law. In optical fiber applications, determining the critical angle is crucial because it governs the conditions under which light rays will be confined within the fiber core.

Snell’s Law

Snell’s Law relates the angles of incidence and refraction for a light beam passing between two media with different refractive indices. It plays a key role in understanding how light behaves at the fiber boundary and in calculating the critical angle for total internal reflection. In fiber optics, Snell’s Law is essential for analyzing the conditions under which light remains guided in the fiber core.

Bending Losses in Optical Fibers

Bending losses occur when an optical fiber is curved, causing some of the guided light to exceed the critical angle at the interface and leak out of the core. The analysis of bending losses involves determining the minimum bend radius that will prevent light from escaping the fiber. This concept is vital in the design and deployment of fiber optic systems, ensuring that the physical bending of fibers in practical installations does not compromise signal integrity.

Dependence on Fiber Geometry and Refractive Index

The geometry of an optical fiber, particularly its diameter, along with its refractive index, directly influences the behavior of light within the fiber, including the conditions for total internal reflection and the impact of bending. As fiber parameters change, such as reducing the diameter or altering the refractive index, the effective range for bending radii also changes. Understanding this dependence is important for the optimization of optical fiber performance and for avoiding light losses in various operating conditions.
