Assume that the maximum aperture of the human eye, D, is...

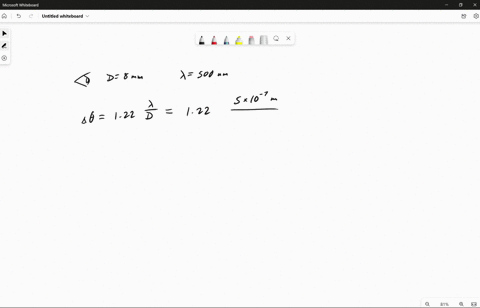

Assume that the maximum aperture of the human eye, $D$, is approximately $8 \mathrm{mm}$ and the average wavelength of visible light, $\lambda,$ is $5.5 \times 10^{-4} \mathrm{mm}$. a. Calculate the diffraction limit of the human eye in visible light. b. How does the diffraction limit compare with the actual resolution of $1-2$ arcmin $(60-120 \text { arcsec }) ?$ c. To what do you attribute the difference?

Assume that the maximum aperture of the human eye, $D$, is approximately $8 \mathrm{mm}$ and the average wavelength of visible light, $\lambda,$ is $5.5 \times 10^{-4} \mathrm{mm}$.
a. Calculate the diffraction limit of the human eye in visible light.
b. How does the diffraction limit compare with the actual resolution of $1-2$ arcmin $(60-120 \text { arcsec }) ?$
c. To what do you attribute the difference?

Key Concepts

Diffraction Limit

The diffraction limit is a fundamental constraint that arises due to the wave nature of light when it passes through an aperture. It sets the smallest angle or spatial detail that can be resolved by an optical system, essentially determining the ultimate resolving power based on the system's aperture size and the wavelength of light.

Rayleigh Criterion

The Rayleigh Criterion provides a practical definition of the diffraction limit for optical systems with circular apertures. It states that two point sources are just resolvable when the principal maximum of one diffraction pattern coincides with the first minimum of the other, leading to an expression that relates the minimum resolvable angle to the wavelength and the diameter of the aperture.

Aperture and Wavelength Relationship

The relationship between the aperture size and the wavelength of light is crucial in determining the resolving capability of an optical system. A larger aperture or a shorter wavelength improves resolution by reducing the angular spread of the diffracted light, which in turn decreases the size of the diffraction pattern, such as the Airy disk.

Angular Resolution

Angular resolution refers to the smallest angle over which details in an image can be distinguished. It is a key parameter in evaluating the performance of optical systems, including the human eye, and is limited both by diffraction and by other factors such as optical imperfections.

Optical Aberrations and Physiological Factors

In practical applications, the actual resolution of an optical system like the human eye can be worse than the theoretical diffraction limit due to optical aberrations, imperfections in the lens system, and limitations of neural processing. These factors contribute to observed differences between the ideal diffraction limit and the resolution achieved in real-world conditions.
