Block B in Fig. 6-31 weighs 711 N . The coefficient of static friction between block and table i

step 1 Two blocks, two masses. We have M sub B. Here going up is the force normal. To the right would b

Block B in Fig. 6-31 weighs 711 N . The coefficient of...

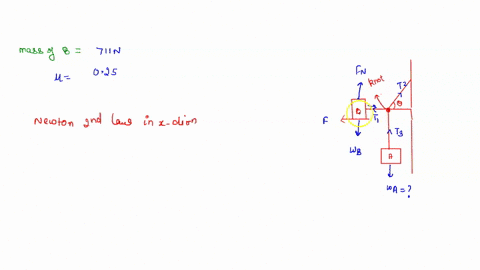

Block $B$ in Fig. $6-31$ weighs 711 $\mathrm{N}$ . The coefficient of static friction between block and table is $0.25 ;$ angle $\theta$ is $30^{\circ} ;$ assume that the cord between $B$ and the knot is horizontal. Find the maximum weight of block $A$ for which the system will be stationary.

Block $B$ in Fig. $6-31$ weighs 711 $\mathrm{N}$ . The coefficient of static friction between block and
table is $0.25 ;$ angle $\theta$ is $30^{\circ} ;$ assume that the cord between $B$ and the knot is horizontal. Find the maximum weight of block $A$ for which the system will be stationary.

Key Concepts

Static Friction

Static friction is the force that resists the initiation of sliding motion between two surfaces in contact. It is proportional to the normal force between the surfaces and is characterized by a coefficient of static friction. The maximum static friction before motion occurs is given by the product of this coefficient and the normal force, and it must be overcome by other forces to initiate movement.

Gravitational Force

Gravitational force, commonly referred to as weight, acts downwards and is calculated as the product of mass and the acceleration due to gravity. In problems involving multiple bodies, gravitational force is a key component in the force balance equations, influencing both normal forces and the tensions in connecting cords or ropes.

Free Body Diagram

A free body diagram is a graphical representation that isolates a single object and depicts all external forces acting upon it. This tool is essential in solving mechanics problems as it helps to clearly identify forces such as tension, friction, weight, and normal force, thereby enabling the correct setting up of equilibrium equations.

Static Equilibrium

This concept refers to the state of a system where all forces acting on it cancel each other out, resulting in no net acceleration. In analyzing problems like this one, it is crucial to set up equations where the sum of forces in all directions equals zero, ensuring that both linear and rotational equilibrium conditions are met.

Tension in a Rope

In many mechanics problems involving ropes or cables, the concept of tension is critical. When the rope is assumed to be light and inextensible, the tension throughout its length is constant. This uniform tension is used to relate the forces acting on different parts of the system, especially when connected to blocks or other masses.
