Calculate the $V_{T}$ of an MOS capacitor where we deposit a high-k gate dielectric, $\mathrm{HfO}_{2}$, whose relative dielectric constant is 25, on a novel $\mathrm{p}$ -type semiconductor whose electron affinity is $4 \mathrm{eV}$, band gap is $1.5 \mathrm{eV}$, relative dielectric constant is 10 , and intrinsic carrier concentration is $10^{12} \mathrm{~cm}^{-3}$. The gate is made of a metal whose work function is $5 \mathrm{eV}$, gate oxide thickness is $100 \mathrm{~A}$, and $N_{A}$ is $10^{\mathrm{ts}} \mathrm{cm}^{-3}$ and that has a fixed oxide charge of $5 \times 10^{10} q \mathrm{Clcm}^{2}$. At $V_{T}$, what are the electron and hole concentrations at the oxide-semiconductor interface and deep in the substrate? Sketch a labeled band diagram normal to the surface at $V_{T}$, and mark off the relevant values on the basis of the numbers given. Sketch the low- and high-frequency $C-V$ characteristics of this capacitor, and explain their differences. How would the characteristics change at large negative gate bias if we doubled the oxide thickness? How about if we doubled the substrate doping?

Calculate the $V_{T}$ of an MOS capacitor where we deposit a high-k gate dielectric, $\mathrm{HfO}_{2}$, whose relative dielectric constant is 25, on a novel $\mathrm{p}$ -type semiconductor whose electron affinity is $4 \mathrm{eV}$, band gap is $1.5 \mathrm{eV}$, relative dielectric constant is 10 , and intrinsic carrier concentration is $10^{12} \mathrm{~cm}^{-3}$. The gate is made of a metal whose work function is $5 \mathrm{eV}$, gate oxide thickness is $100 \mathrm{~A}$, and $N_{A}$ is $10^{\mathrm{ts}} \mathrm{cm}^{-3}$ and that has a fixed oxide charge of $5 \times 10^{10} q \mathrm{Clcm}^{2}$. At $V_{T}$, what are the electron and hole concentrations at the oxide-semiconductor interface and deep in the substrate? Sketch a labeled band diagram normal to the surface at $V_{T}$, and mark off the relevant values on the basis of the numbers given.

Sketch the low- and high-frequency $C-V$ characteristics of this capacitor, and explain their differences. How would the characteristics change at large negative gate bias if we doubled the oxide thickness? How about if we doubled the substrate doping?

Key Concepts

Threshold Voltage of MOS Capacitors

This is the critical gate voltage at which strong inversion occurs in a MOS structure, meaning that the surface potential is large enough to form a conductive channel of minority carriers. The threshold voltage is influenced by factors such as the work function difference between the gate and the semiconductor, oxide charge, oxide thickness, substrate doping, and intrinsic properties of the semiconductor. It acts as the switch point for device operation, determining when the MOS device transitions from the off state to the on state.

Energy Band Diagrams in MOS Devices

Band diagrams visually represent the energy levels (conduction band, valence band, and Fermi level) across the MOS capacitor. They show how external bias causes band bending in the semiconductor, affecting carrier distribution at the interface. These diagrams are crucial for understanding the mechanisms of accumulation, depletion, and inversion, and help in identifying the built-in potential, barrier heights, and the effects of various material parameters such as band gap and electron affinity.

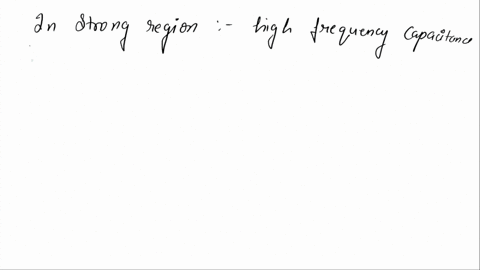

Capacitance-Voltage (C-V) Characteristics in MOS Capacitors

The C-V measurement is a key method for characterizing MOS capacitors and reveals the behavior of the device under different biasing conditions. High-frequency C-V curves capture the fast response of the system where minority carriers cannot follow the ac signal, while low-frequency C-V curves allow for carrier redistribution, showcasing different capacitance values in accumulation, depletion, and inversion. These differences provide insights into oxide quality, interface states, and doping levels in the semiconductor.

Effects of Oxide Thickness

Oxide thickness in MOS capacitors is directly related to the oxide capacitance, which in turn affects the threshold voltage and overall electrostatic control of the device. A thicker oxide layer results in a lower capacitance, leading to a higher threshold voltage for inversion and a more gradual change in the C-V characteristics. Changes in the oxide thickness also impact the device’s sensitivity to interface charges and fixed oxide traps.

Impact of Substrate Doping

The level of substrate doping significantly influences the depletion width and hence the threshold voltage of a MOS capacitor. Higher doping concentrations decrease the depletion width, result in a higher capacitance in depletion, and often shift the threshold voltage. Doping affects carrier concentration gradients and the extent of band bending, which fundamentally determine the onset of inversion and the overall device performance during operation.
