Carbon dioxide gas enters a pipe at 3 MPa and 500 K at a rate of 2 kg / s . CO2 is cooled at c

step 1 The ideal gas law is P1V1 equals MRT1. If we take the time derivative, we can find the volume ra

Carbon dioxide gas enters a pipe at 3 MPa and 500 K at a...

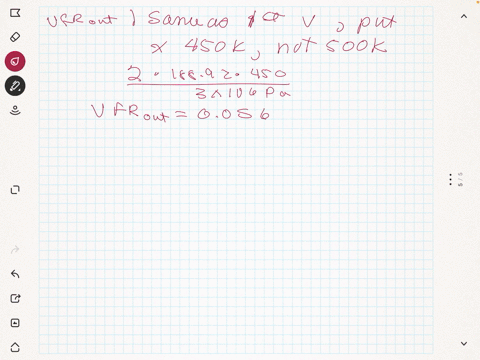

Carbon dioxide gas enters a pipe at $3 \mathrm{MPa}$ and $500 \mathrm{~K}$ at a rate of $2 \mathrm{~kg} / \mathrm{s} . \mathrm{CO}_2$ is cooled at constant pressure as it flows in the pipe and the temperature $\mathrm{CO}_2$ drops to $450 \mathrm{~K}$ at the exit. Determine the volume flow rate and the density of carbon dioxide at the inlet and the volume flow rate at the exit of the pipe using $(a)$ the ideal-gas equation and $(b)$ the generalized compressibility chart. Also, determine $(c)$ the error involved in each case.

Key Concepts

Constant Pressure Process

A constant pressure process, or isobaric process, refers to a thermodynamic process in which the pressure remains constant while other properties such as temperature and volume may change. This type of process simplifies analysis because the pressure term does not vary, and it is widely used in practical applications. In cooling or heating operations at constant pressure, the relationship between temperature and volume (or density) directly affects the fluid’s properties and flow characteristics.

Error Analysis

Error analysis in this context involves comparing the results obtained from the simpler Ideal Gas Law with those obtained from the more accurate real gas corrections provided by the Generalized Compressibility Chart. This comparison helps quantify the deviation that arises from assuming ideal behavior, thus highlighting the conditions under which the ideal gas approximation may lead to significant inaccuracies. Such analysis is essential for ensuring the reliability and safety of engineering designs involving gas flow and thermodynamic processes.

Density

Density is defined as the mass per unit volume of a substance. It plays an important role in determining how fluids behave under various thermodynamic conditions. Density can be calculated directly using the Ideal Gas Law for ideal conditions, or adjusted using the compressibility factor for real gases, allowing accurate predictions in systems where pressure and temperature vary.

Volume Flow Rate

Volume flow rate is a measure of the volume of fluid that passes through a given surface per unit time. It can be determined by dividing the mass flow rate by the fluid's density. In thermodynamic processes, especially those involving changes in temperature and pressure, calculating the volume flow rate is crucial as it directly impacts the design and analysis of systems like pipelines, nozzles, and reactors.

Generalized Compressibility Chart

The Generalized Compressibility Chart is a tool used to account for deviations from ideal gas behavior by introducing the compressibility factor (z). This factor corrects the predictions of the Ideal Gas Law for real gases under a variety of conditions, particularly at high pressures or low temperatures. By using this chart, engineers can obtain more accurate estimates for gas properties like density and volume flow rate, reflecting the real behavior of gas molecules, including their interactions and finite size.

Ideal Gas Law

The Ideal Gas Law is a fundamental equation in thermodynamics that relates the pressure, volume, and temperature of a gas to the amount of substance present. It is expressed as PV = nRT, where n is the number of moles and R is the universal gas constant. In engineering applications, this law is often used to calculate properties such as density and volume flow rate under the assumption that the gas molecules do not interact and occupy negligible volume, which works well at high temperatures and low pressures.
