Consider a cylindrical capacitor, with outer radius R and...

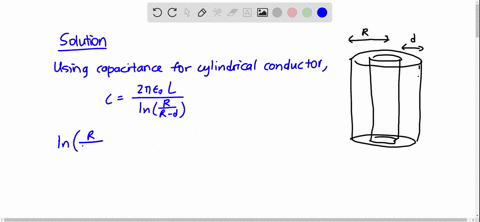

Consider a cylindrical capacitor, with outer radius $R$ and cylinder separation $d$. Determine what the capacitance approaches in the limit where $d \ll R$. (Hint: Express the capacitance in terms of the ratio $d / R$ and then examine what happens as the ratio $d / R$ becomes very small compared to $1 .)$ Explain why the limit on the capacitance makes sense.

Key Concepts

Limit Analysis

Limit analysis is a technique used to understand how a physical quantity behaves under extreme or asymptotic conditions—in this case when the ratio of the gap to radius approaches zero. This method helps in validating theoretical predictions by comparing them with more intuitive or well-known results, ensuring that the derived expressions make sense in known limiting cases.

Capacitance

Capacitance is a measure of a system's ability to store electrical charge for a given potential difference. It depends on both the geometry of the conductors and the properties of the insulating medium between them. The relationship is typically expressed as Q = C V, where Q represents the stored charge, V is the voltage, and C is the capacitance.

Cylindrical Capacitor Geometry

A cylindrical capacitor is an arrangement of conductors in which the electrodes take the form of coaxial cylinders. This geometry leads to an electric field that varies with the radial distance from the axis, and the capacitance calculation must take into account the logarithmic dependence resulting from the cylindrical symmetry.

Small Gap Approximation

The small gap approximation involves examining the behavior of a capacitor when the separation between its conductors is much smaller than other characteristic dimensions (e.g., the outer radius in a cylindrical capacitor). In this limit, curvature effects become negligible, and the system may locally resemble a parallel plate capacitor, allowing for significant simplifications in the mathematical analysis.
