Consider a U-tube whose arms are open to the atmosphere. Now...

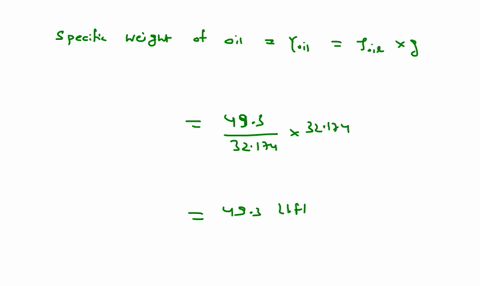

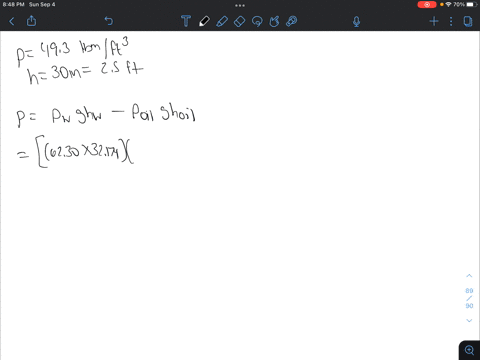

Consider a U-tube whose arms are open to the atmosphere. Now equal volumes of water and light oil ( $\rho=$ $49.3 \mathrm{lbm} / \mathrm{ft}^3$ ) are poured from different arms. A person blows from the oil side of the U-tube until the contact surface of the two fluids moves to the bottom of the U-tube, and thus the liquid levels in the two arms are the same. If the fluid height in each arm is $30 \mathrm{in}$, determine the gage pressure the person exerts on the oil by blowing. FIGURE P1–112E(Figure Cant Copy)

Key Concepts

Pressure Equilibrium at Interfaces

In systems with immiscible fluids, the interface between the fluids will settle at a position where the hydrostatic pressures of the fluids balance. When additional pressures are externally applied (for example, by blowing into one arm), the relative fluid levels adjust to restore equilibrium, and calculating the necessary external pressure involves understanding how the different densities affect the pressure distribution.

Fluid Statics in U-Tubes

Fluid statics in U-tubes involves analyzing the pressure distribution in a U-shaped container with fluids at rest. In such systems, the pressure at the same horizontal level must be equal, which allows for the determination of differences in fluid column heights when the fluids have different densities or when additional pressures are applied to one arm.

Role of Fluid Density in Pressure Calculations

The density of a fluid is a key factor in determining the hydrostatic pressure produced by a column of fluid. Small differences in density, when multiplied by the gravitational acceleration and the fluid height, can result in significant differences in pressure, which is fundamental to understanding balancing conditions in multi-fluid systems like a U-tube.

Hydrostatic Pressure

Hydrostatic pressure is the pressure exerted by a fluid at rest due to the weight of the fluid above a given point. It increases linearly with depth as described by the equation p = ?gh, where ? is the fluid density, g is the acceleration due to gravity, and h is the vertical height of the fluid column above the point of measurement.

Gauge Pressure

Gauge pressure is the pressure measured relative to the ambient atmospheric pressure. In many practical fluid mechanics problems, such as those involving open-tube systems, it is important to distinguish between absolute pressure and gauge pressure when relating system pressures to atmospheric conditions.
