Consider the circuit shown in Figure P 26.23, where C1=6.00 μF, C2=3.00 μF, and ΔV=20.0 V . Capa

step 1 So here we have Q equals C delta v equals 6 times 10 to the minus 6 times 20 equals 120 times 10

Consider the circuit shown in Figure P 26.23, where C1=6.00...

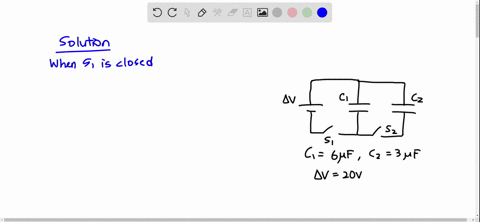

Consider the circuit shown in Figure $\mathrm{P} 26.23,$ where $C_{1}=6.00 \mu \mathrm{F}, C_{2}=3.00 \mu \mathrm{F},$ and $\Delta V=20.0 \mathrm{V} .$ Capacitor $\bar{C}_{1}$ is first charged by the closing of switch $\mathrm{S}_{1} .$ Switch $\mathrm{S}_{1}$ is then opened, and the charged capacitor is connected to the uncharged capacitor by the closing of $S_{2} .$ Calculate the initial charge acquired by $C_{1}$ and the final charge on each capacitor. CAN'T COPY THE FIGURE

Consider the circuit shown in Figure $\mathrm{P} 26.23,$ where $C_{1}=6.00 \mu \mathrm{F}, C_{2}=3.00 \mu \mathrm{F},$ and $\Delta V=20.0 \mathrm{V} .$ Capacitor
$\bar{C}_{1}$ is first charged by the closing of switch $\mathrm{S}_{1} .$ Switch $\mathrm{S}_{1}$ is then opened, and the charged capacitor is connected to the uncharged capacitor by the closing of $S_{2} .$ Calculate the initial charge acquired by $C_{1}$ and the final charge on each capacitor.
CAN'T COPY THE FIGURE

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Charge Redistribution in Capacitor Networks

When capacitors are connected together, especially in parallel, the charge redistributes between them until they reach a common voltage. This occurs according to charge conservation and the fact that the final voltage across each capacitor in a parallel arrangement must be the same, with the individual charges determined by each capacitor’s capacitance.

Conservation of Charge

The conservation of charge principle states that the total electric charge in an isolated system remains constant. When a charged capacitor is connected to an uncharged one, the total charge is redistributed between them, but the sum of the charges on both capacitors remains equal to the original charge.

Capacitance

Capacitance is a measure of a capacitor’s ability to store electrical charge per unit voltage. It quantifies how much charge a capacitor will hold when a particular voltage is applied across its terminals, following the relationship Q = C × V, where Q is the charge, C is the capacitance, and V is the voltage.

Charging of Capacitors

Charging a capacitor involves applying a voltage across its plates so that an electric field is established, and charge accumulates on each plate. This process results in a stored energy that can be later released when the circuit is reconfigured or the capacitor discharges.
