Data In addition to testing for a linear correlation between $x$ and $y$, we can often use transformations of data to explore other relationships. For example, we might replace each $x$ value by $x^{2}$ and use the methods of this section to determine whether there is a linear correlation between $y$ and $x^{2}$. Given the paired data in the accompanying table, construct the scatterplot and then test for a linear correlation between $y$ and each of the following. Which case results in the largest value of $r$ ? a. $x$ b. $x^{2}$ c. $\log x$ d. $\sqrt{x}$ e. $1 / x$ $\begin{array}{|l|c|c|c|c|c|} \hline \boldsymbol{x} & 2 & 3 & 20 & 50 & 95 \\ \hline \boldsymbol{y} & 0.3 & 0.5 & 1.3 & 1.7 & 2.0 \\ \hline \end{array}$

Data In addition to testing for a linear correlation between $x$ and $y$, we can often use transformations of data to explore other relationships. For example, we might replace each $x$ value by $x^{2}$ and use the methods of this section to determine whether there is a linear correlation between $y$ and $x^{2}$. Given the paired data in the accompanying table, construct the scatterplot and then test for a linear correlation between $y$ and each of the following. Which case results in the largest value of $r$ ?
a. $x$
b. $x^{2}$
c. $\log x$
d. $\sqrt{x}$
e. $1 / x$

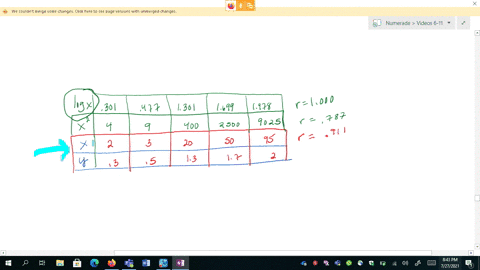

$\begin{array}{|l|c|c|c|c|c|}
\hline \boldsymbol{x} & 2 & 3 & 20 & 50 & 95 \\
\hline \boldsymbol{y} & 0.3 & 0.5 & 1.3 & 1.7 & 2.0 \\
\hline
\end{array}$

Key Concepts

Scatterplot

A scatterplot is a graphical representation that uses Cartesian coordinates to display values for two variables. It is a crucial tool in exploratory data analysis to visually assess the relationship, trends, patterns, or potential outliers in the data before performing further statistical tests like correlation or regression.

Correlation Coefficient

The correlation coefficient, often denoted by r, quantifies the strength and direction of a linear relationship between two variables. Its value ranges from -1 to 1, where values close to 1 or -1 indicate a strong linear relationship, while values near zero suggest a weak or no linear association.

Data Transformation

Data transformation involves applying mathematical functions such as squaring, logarithms, square roots, or taking reciprocals to the original data. This is done to linearize non-linear relationships, stabilize variance, or meet the assumptions required for certain statistical analyses, making it easier to identify true underlying patterns.

Linear Regression

Linear regression is a statistical method used to model and analyze the relationship between a dependent variable and one or more independent variables by fitting a linear equation. It helps predict values, and assessing the fit of the model often includes testing for the significance and strength of the linear correlation between the transformed or original variables.
