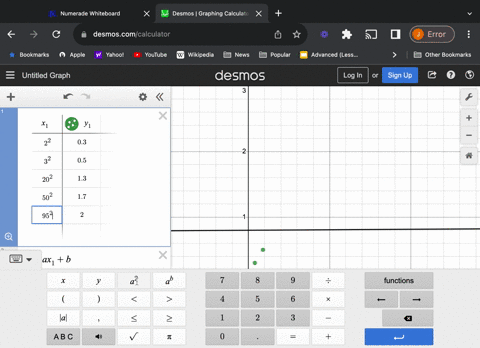

Transformed Data In addition to testing for a linear correlation between $x$ and $y$, we can often use transformations of data to explore other relationships. For example, we might replace each $x$ value by $x^{2}$ and use the methods of this section to determine whether there is a linear correlation between $y$ and $x^{2}$. Given the paired data in the accompanying table, construct the scatterplot and then test for a linear correlation between $y$ and each of the following. Which case results in the largest value of $r ?$a. $x$ b. $x^{2}$ c. $\log x$ d. $\sqrt{x}$ e. $1 / x$$$\begin{array}{|l|l|l|l|l|l|}\hline \boldsymbol{x} & 2 & 3 & 20 & 50 & 95 \\\hline \boldsymbol{y} & 0.3 & 0.5 & 1.3 & 1.7 & 2.0 \\\hline\end{array}$$

Transformed Data In addition to testing for a linear correlation between $x$ and $y$, we can often use transformations of data to explore other relationships. For example, we might replace each $x$ value by $x^{2}$ and use the methods of this section to determine whether there is a linear correlation between $y$ and $x^{2}$. Given the paired data in the accompanying table, construct the scatterplot and then test for a linear correlation between $y$ and each of the following. Which case results in the largest value of $r ?$a. $x$
b. $x^{2}$
c. $\log x$
d. $\sqrt{x}$
e. $1 / x$$$\begin{array}{|l|l|l|l|l|l|}\hline \boldsymbol{x} & 2 & 3 & 20 & 50 & 95 \\\hline \boldsymbol{y} & 0.3 & 0.5 & 1.3 & 1.7 & 2.0 \\\hline\end{array}$$

Key Concepts

Assessing Linear Relationships After Transformation

Assessing linear relationships after applying various transformations is a method to determine whether a nonlinear relationship can be made linear. By transforming the independent variable and then evaluating the correlation with the dependent variable, one can select the transformation that yields the highest correlation coefficient, indicating the most effective linear approximation of the relationship.

Data Transformation

Data transformation involves applying a mathematical function to a variable, such as squaring, taking a logarithm, square root, or reciprocal. The goal is to alter the shape of the data distribution to better meet the assumptions of linear models or to linearize a nonlinear relationship. This process is essential when the direct relationship between the variables is not linear.

Scatterplot

A scatterplot is a graphical tool for displaying paired data on a coordinate system. By plotting one variable against the other, it allows us to visually assess the nature, direction, and strength of the relationship between the variables. In this context, it helps to identify whether the relationship appears linear or if a transformation might better reveal an underlying pattern.

Correlation Coefficient

The correlation coefficient is a statistical measure that quantifies the degree of linear association between two variables. Its value ranges from -1 to 1, where values closer to absolute 1 indicate a stronger linear relationship. In problems like this, comparing the correlation coefficients for different transformations helps determine which transformation results in the strongest linear relationship with the response variable.
