Definite integrals Use geometry (not Riemann sums) to evaluate the following definite integrals.

Definite integrals Use geometry (not Riemann sums) to...

Key Concepts

Area Under a Curve

This concept relates to computing the region (or regions) between the graph of a function and the x-axis over a certain interval. By interpreting the definite integral as the net area, one can visually understand how different portions of the graph contribute positive or negative values to the total accumulation, depending on their position relative to the x-axis.

Definite Integral

A definite integral calculates the signed area under a curve between two specified limits. In general, this area is understood as the net result of summing the area above the x-axis (positive area) and below the x-axis (negative area), giving a meaningful measure of the accumulated quantity over an interval.

Geometric Interpretation of Integration

Instead of approximating the area under a curve by summing an infinite number of small rectangles (as in Riemann sums), a geometric interpretation involves identifying familiar shapes such as triangles, rectangles, or trapezoids whose areas can be computed with standard formulas. This approach is especially useful when the function involved produces regions with well-known geometric properties.

Properties of Linear Functions

When the integrand is a linear function, its graph is a straight line. This simplifies the process of shading and identifying geometric shapes within the region of interest. The simplicity of the line makes it straightforward to calculate areas such as those of triangles and trapezoids, thereby allowing for a direct geometric computation of the integral.

Transcript

00:01 So in this question, we are given the integral between minus 4 and 2 of 2x plus 4, integrated with respect to x.

00:10 And we are asked to use geometry rather than the reman sums that have been used previously to calculate the value of the integral.

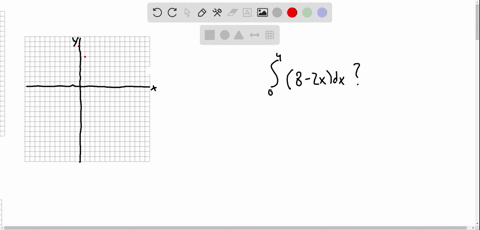

00:19 Now to do that, we're going to need to sketch a graph of the integrand, which is this bit inside the integral there.

00:26 And show which is the region that we're integrating on the graph and then interpret what we get as the value of our integral from that.

00:34 So start off because it's a straight line with constant gradient, the easiest thing to do is mark the start and end points of the graph and join them up with a straight line.

00:45 It's only a sketch that doesn't have to be too accurate, but if you put in the start point which is x equals minus 4 into that, you'll get minus 4 out.

00:54 So you come up minus 4 minus 4.

00:56 And if you put in x equals 2, you'll get 8 out.

00:59 So mark that.

01:01 And then you know there are a straight line.

01:03 So join them with a straight line.

01:05 There we go.

01:05 Mine goes nice and straight.

01:07 It doesn't have to be perfectly straight as it's a sketch, but you can just check that.

01:11 The gradient is indeed 2.

01:12 For every one you go across, you go up 2.

01:15 And the intercept there is at 4.

01:17 So we know that that's just what we want.
