Net area and definite integrals Use geometry (not Riemann sums) to evaluate the following defini

step 1 We want to calculate this definite integral. Now, a definite integral will equal the area of the

Net area and definite integrals Use geometry (not Riemann...

Key Concepts

Graphical Analysis and x-Intercepts

Sketching the graph of the integrand, particularly identifying key features such as the x-intercept, helps in visualizing the region whose area is being calculated. Knowing where the function crosses the x-axis divides the integral into parts, making it easier to calculate the net signed area by separately evaluating areas above and below the axis.

Geometric Approach to Integration

Using geometry to evaluate definite integrals involves breaking down the region under the curve into simple geometric shapes—like rectangles, triangles, or trapezoids—whose areas can be calculated exactly without the need for limits of Riemann sums. This method is especially useful for functions that are linear or form simple curves.

Net Area

Net area is the concept of summing areas with a sign: areas above the x-axis contribute positively while areas below contribute negatively. This concept is crucial when the region under the curve spans both above and below the x-axis, allowing the calculation to account for the cancellation of areas.

Definite Integral

The definite integral of a function over an interval represents the net area between the function's graph and the x-axis, where areas above the axis are counted as positive and areas below as negative. It provides a numerical value that reflects the accumulation of quantities, like displacement or total change, over the interval.

Transcript

00:04 We want to calculate this definite integral.

00:08 Now, a definite integral will equal the area of the region above the x -axis minus the area of the region below the x -axis.

00:15 So let's look at the graph of 2x plus 4 on the interval from negative 4 to 2.

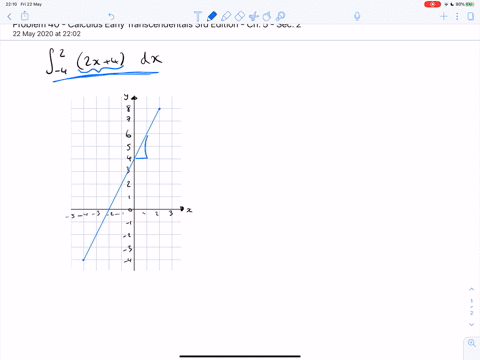

00:20 So here's the graph of 2x plus 4 on the interval between negative 4 and 2.

00:27 You can see the graph is below the x -axis.

00:31 The function is negative from negative.

00:34 Negative 4 to negative 2, and then from 2 all the way up to, from negative 2, all the way up to positive 2, the function is then positive.

00:46 So basically, the definite integral is going to take this positive area, the area underneath the red curve and above the x -axis, the area of this large triangle above the x -axis, and it's going to subtract the area of this little.

01:04 Triangle where the function is negative below the x -axis.

01:12 So let's write this.

01:17 The definite integral will equal the area of the region above the x -axis where the function is positive.

01:40 And the way the definite integral works is it then will subtract from that area where function was positive.

01:49 It will then subtract the area of the region below the x -axis, where the function was negative.

02:19 So that's how definite integrals work.

02:21 They take the area of the region that's above the x -axis, and they subtract the area of the region below the x -axis.

02:28 So let's find the area of the region above the x -axis.

02:35 The region above the x -axis, right here, between the curve and the x -axis, we're looking at a triangular region.

02:45 And so we're going to use the area of a triangle, one -half times the base, which will be one, two, three, four times the height, one, two, three, four, five, six, seven, eight...
